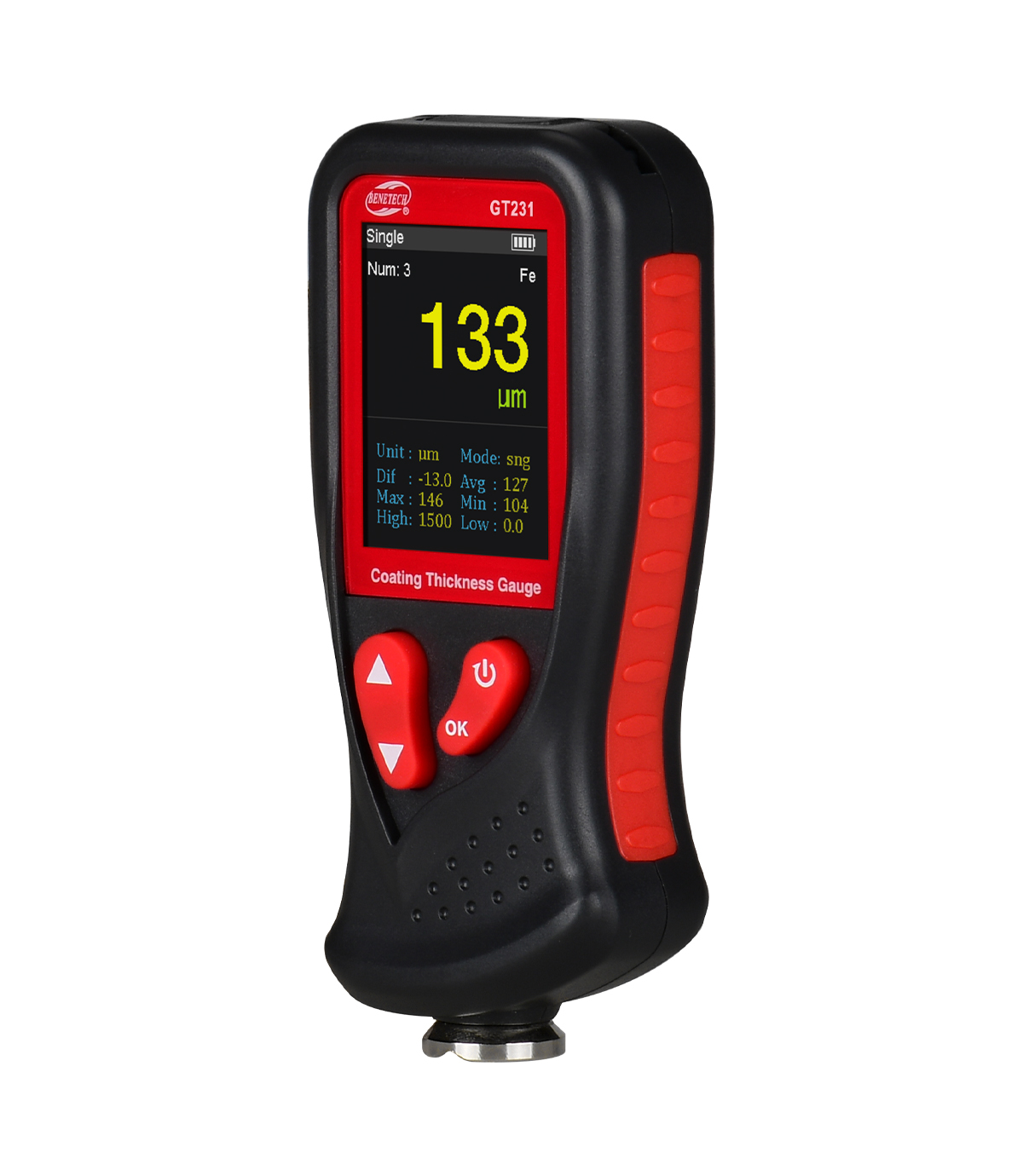

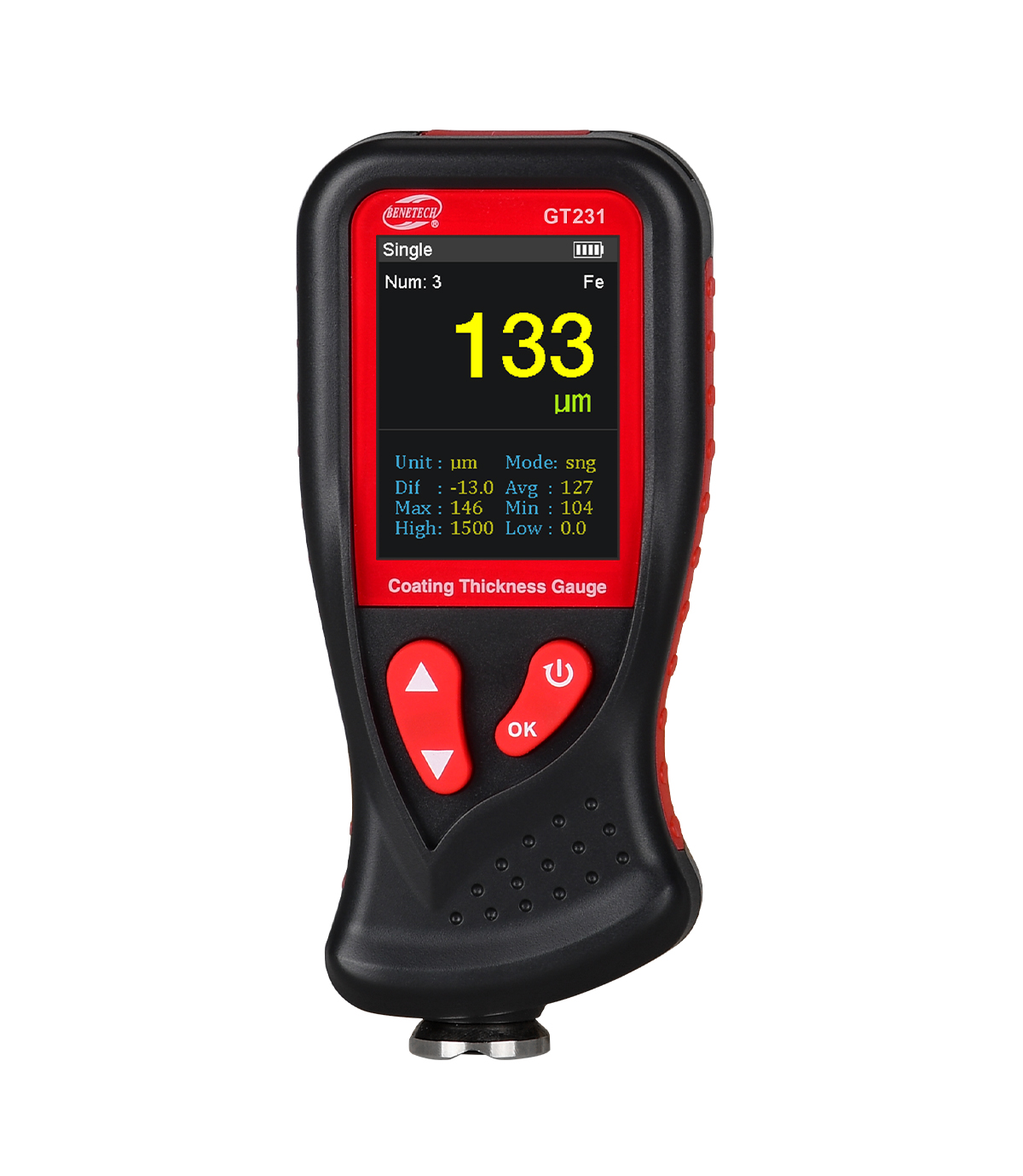

• 1.Menu operation and color-screen HD display.
  2.Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate .
  3.Two measurement methods: single measurement, continuous measurement.
  4.Basic calibration and Zero-point calibration available.
  5.Metric/imperial unit and storage function.
  6.Screen rotation, charge protection, multi-interface displays, screen brightness selection.
  7.Voice broadcast.
  8.Automatic shutdown.

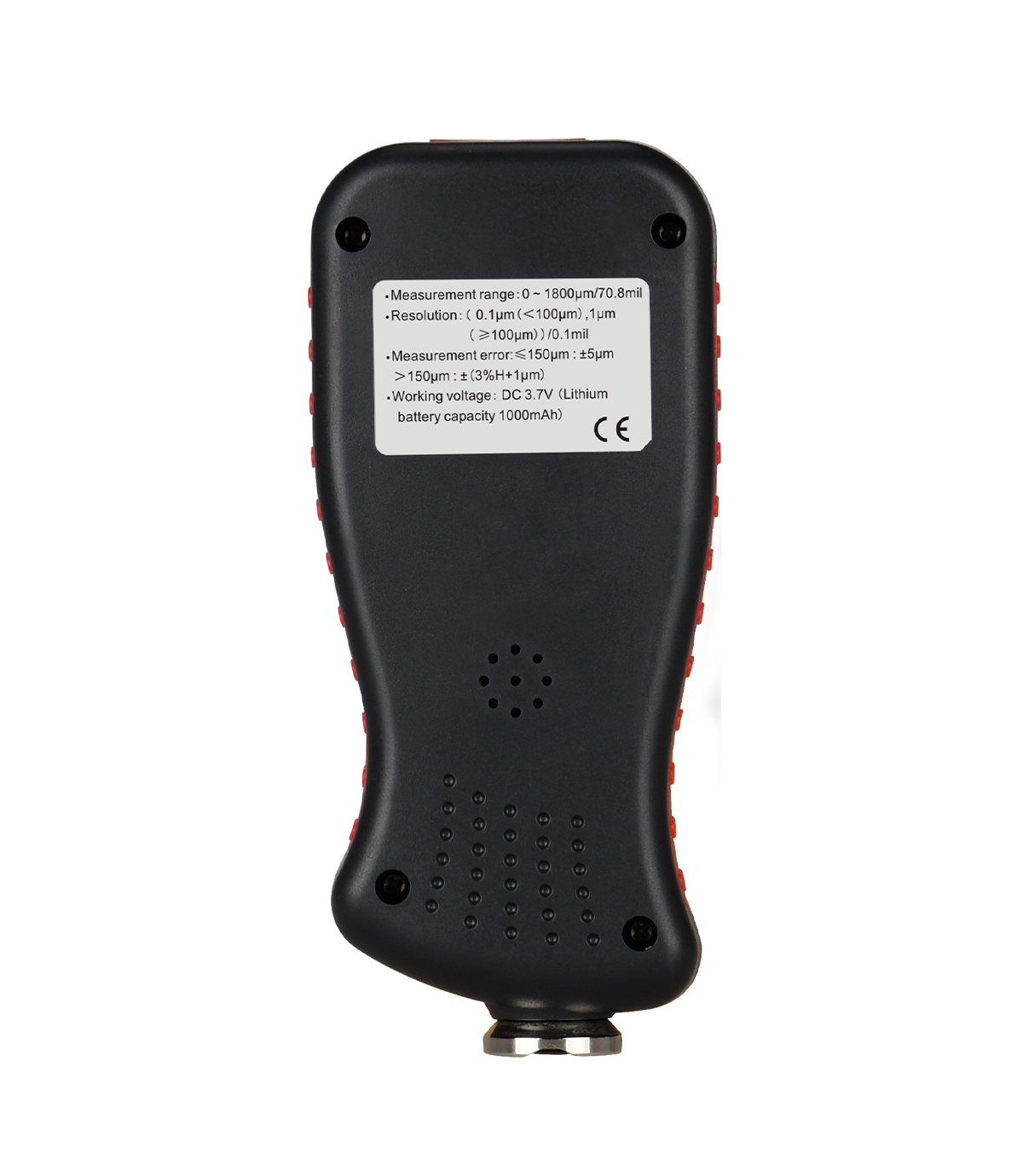

• Measurement range	0 ~ 1800μm/70.8mil
  Resolution	( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
  Measurement error	≤150μm ±5μm    ＞150μm ±(3%H+1μm)
  Minimum diameter of magnetic metal substrate	12mm
  Minimum thickness of magnetic metal substrate	0.5mm
  Minimum radius of curvature for magnetic convex substrate	2mm
  Minimum radius of curvature for magnetic concave substrate	11mm
  Minimum diameter of non-magnetic metal substrate	50mm
  Minimum thickness of non-magnetic metal substrate	0.5mm
  Working voltage	DC 3.7V (Lithium battery capacity 1000mAh)
  Number of data storage	Max. 1500 pens
  Size	52.9*26*117mm
  Weight	102.4g(including battery)




• Please refer to the manual for details
•
• \
