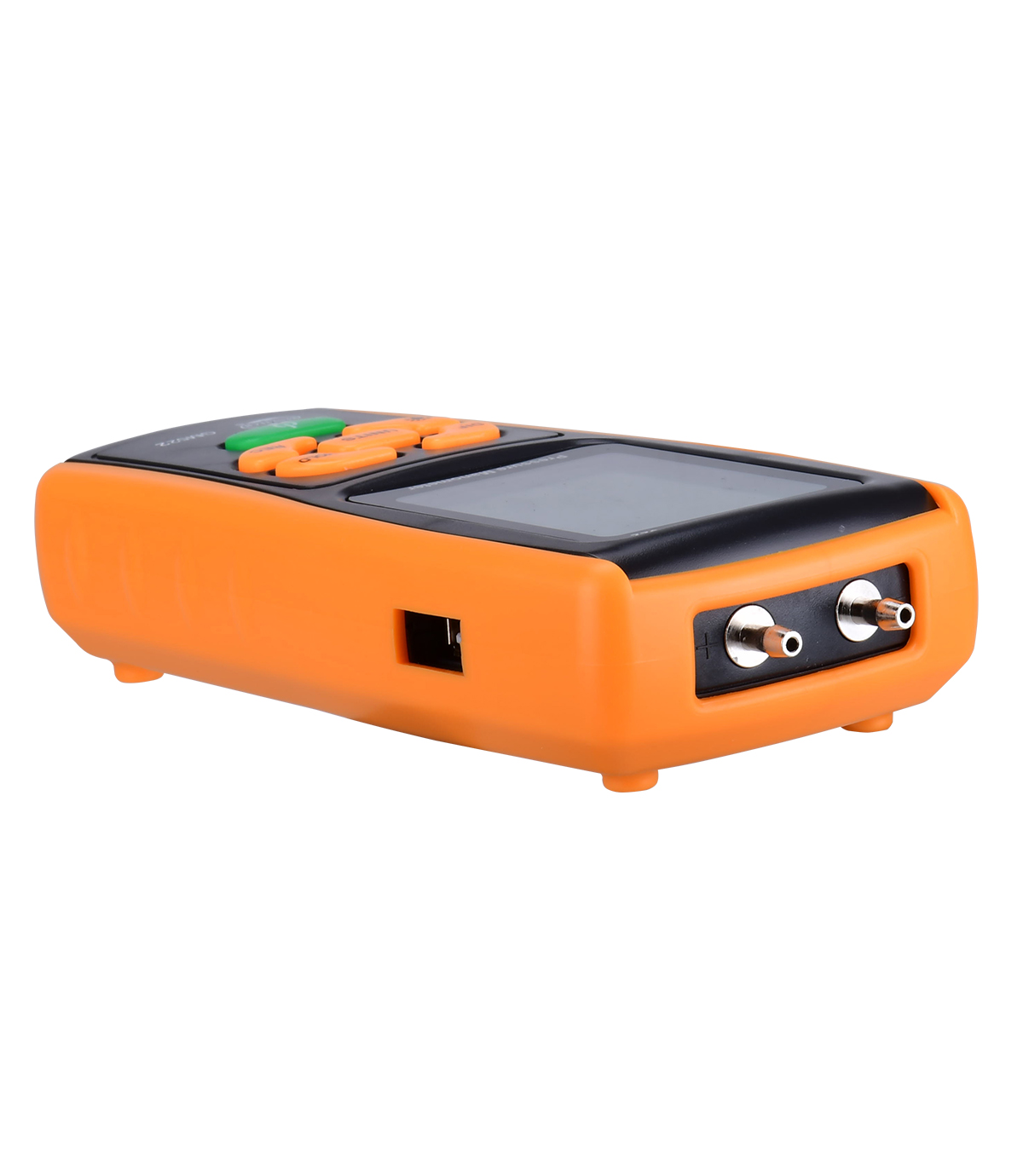

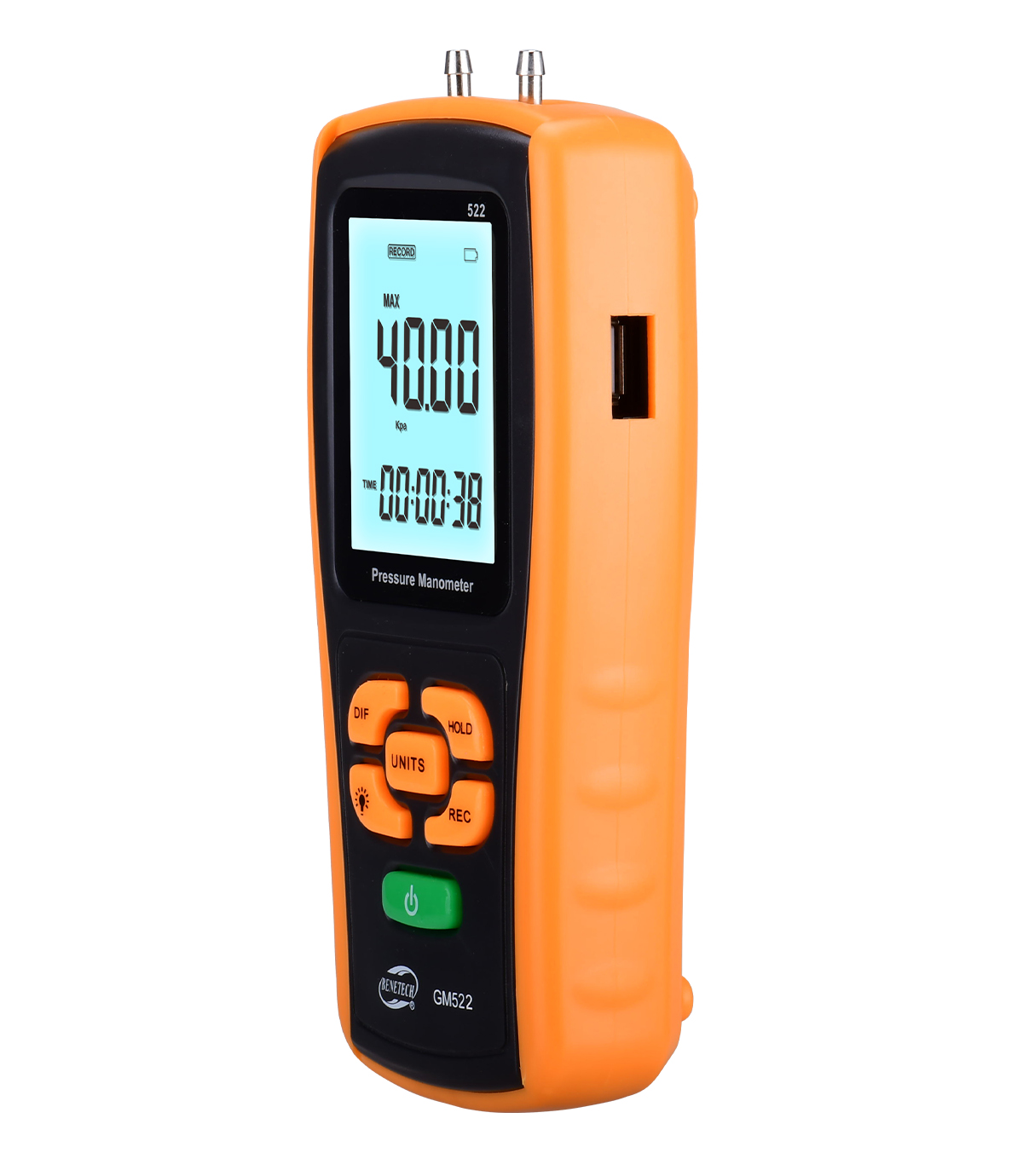

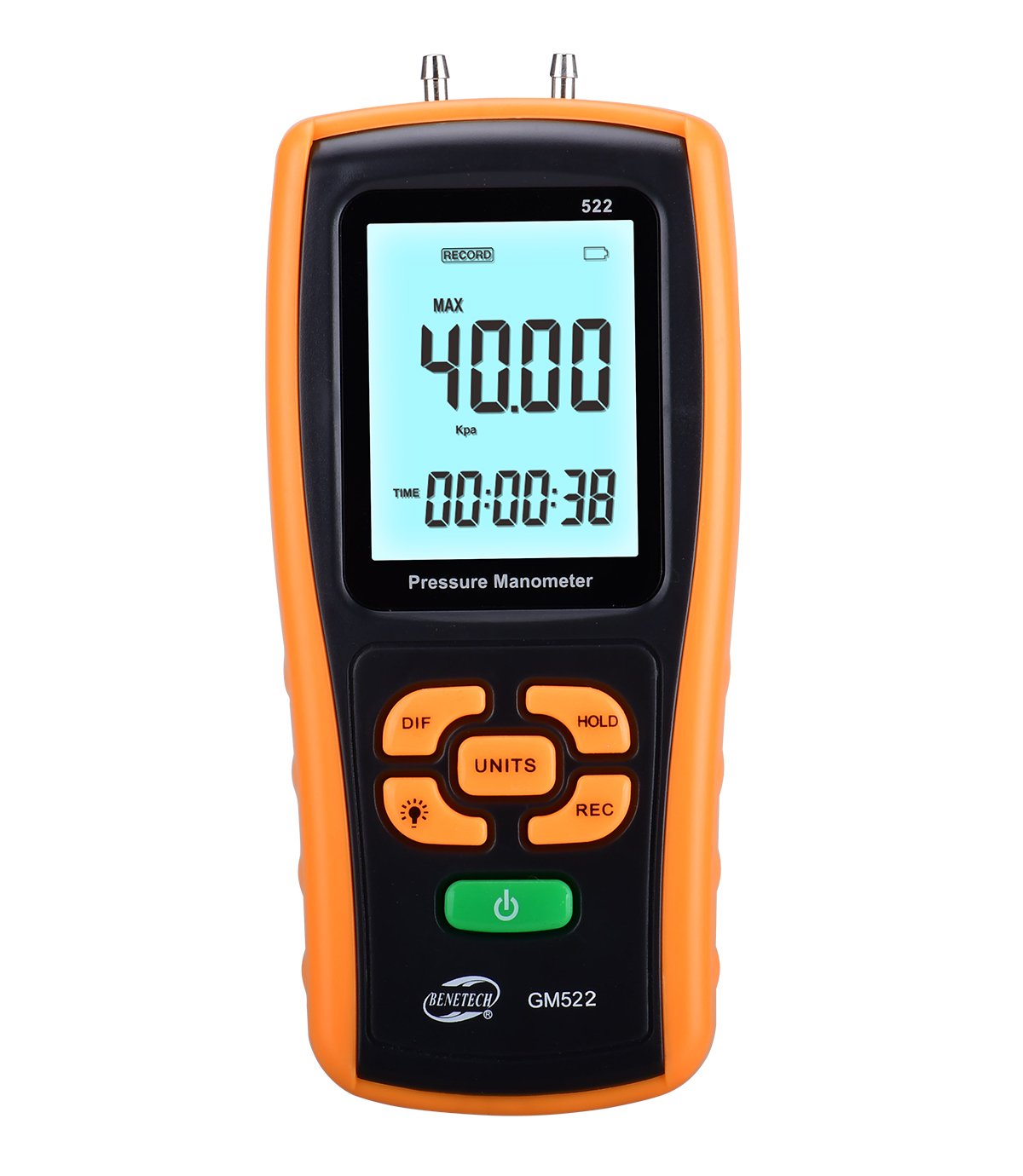

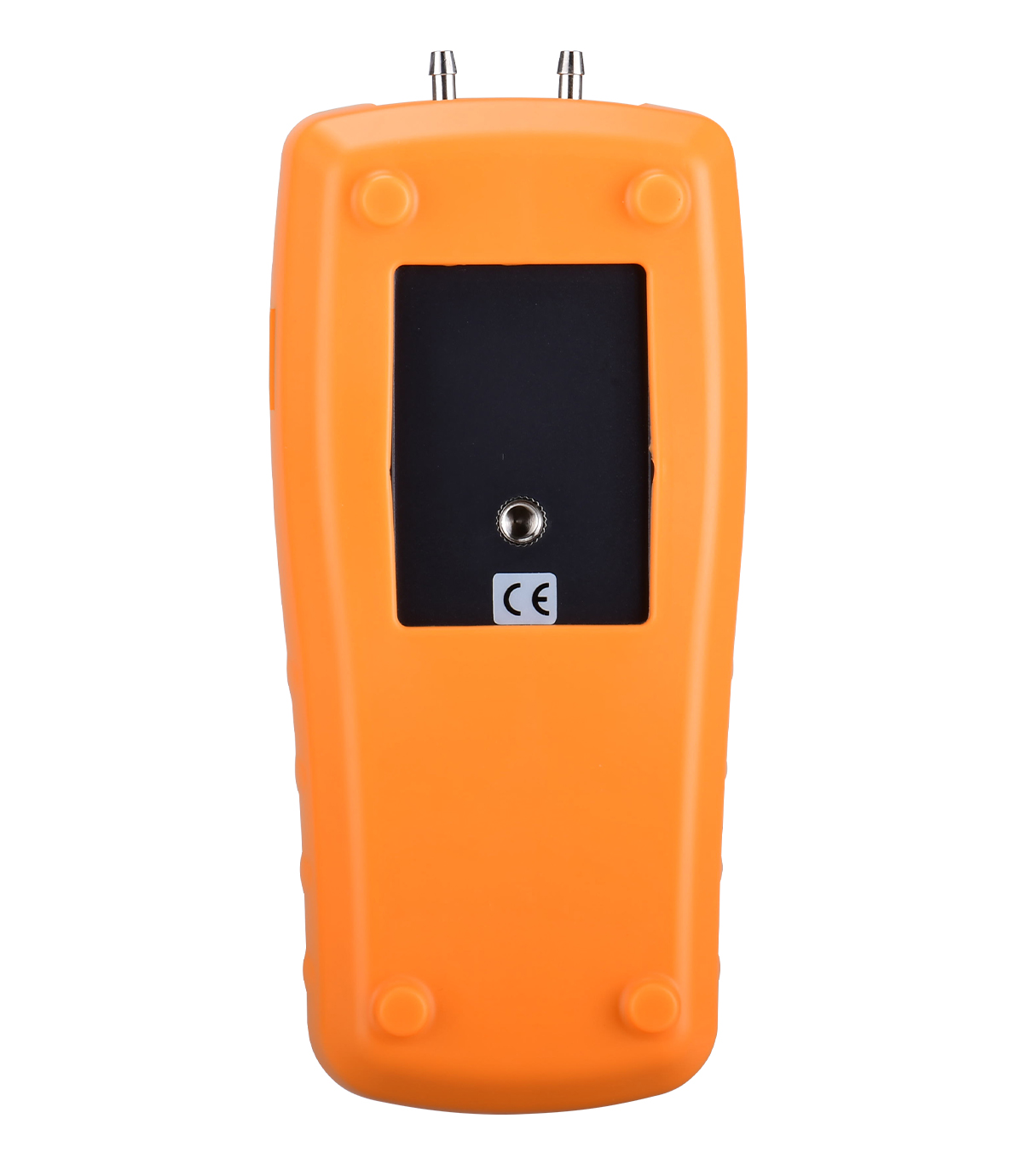

Pressure Manometer GM522

Home >
Products

There are following 11 selectable pressure units: bar、mbar、kPa、kgf/cm²、mmHg、cmH2O、Ozf/in²、psi、inHg、inH 2 O、ftH 2 O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.

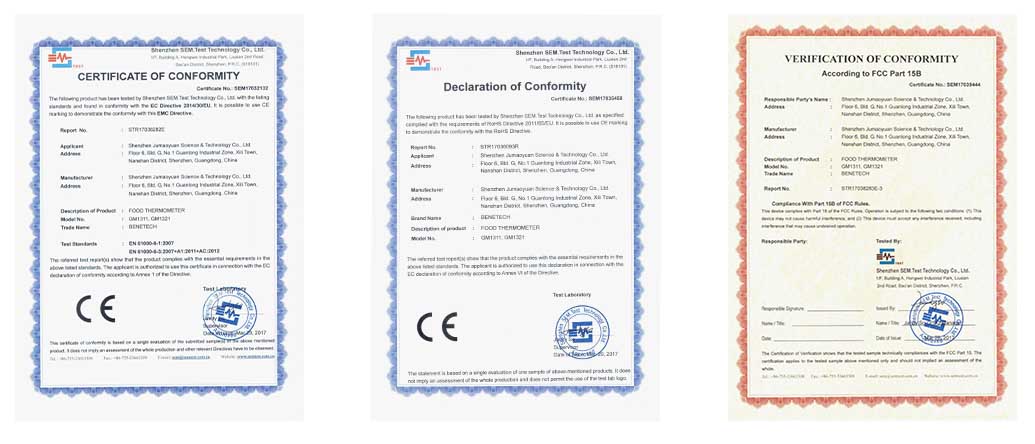

Features Specifications Applications Accessories Download Certification

sales@benetechco.com

Pressure Manometer possesses the following features:

1.Large LCD
2.Data hold
3.With differential mode and record mode
4.USB port
5.Reset and data adjustment
6.Low battery indication and automatic power off

Measuring range	±100kPa
Accuracy	±0.3%FSO(25℃)
Repeatability	±0.2%(Maximum＋/－0.5%FSO)
Linearity/Hysteresis	±0.29%FSO
Response	Typical 0.5s
Low battery indication	Yes
Up overload indication	Err1
Down overload indication	Err2
Operating temperature	0~50℃
Storage temperature	-10~60℃
Power supply	1.5V AAA battery*4
USB communication	Yes

Model	Unit	Range	Resolution	Maximum pressure
GM522	bar	1.000	0.001	4.000
GM522	mbar	1000	0.1	4000
GM522	kPa	100.0	0.01	400.0
GM522	kgf/cm²	1.019	0.001	4.078
GM522	mmHg	750.0	0.1	3000
GM522	cmH2O	1019	0.1	4078
GM522	Ozf/in²	227.5	0.01	910.2

Please refer to the manual for details

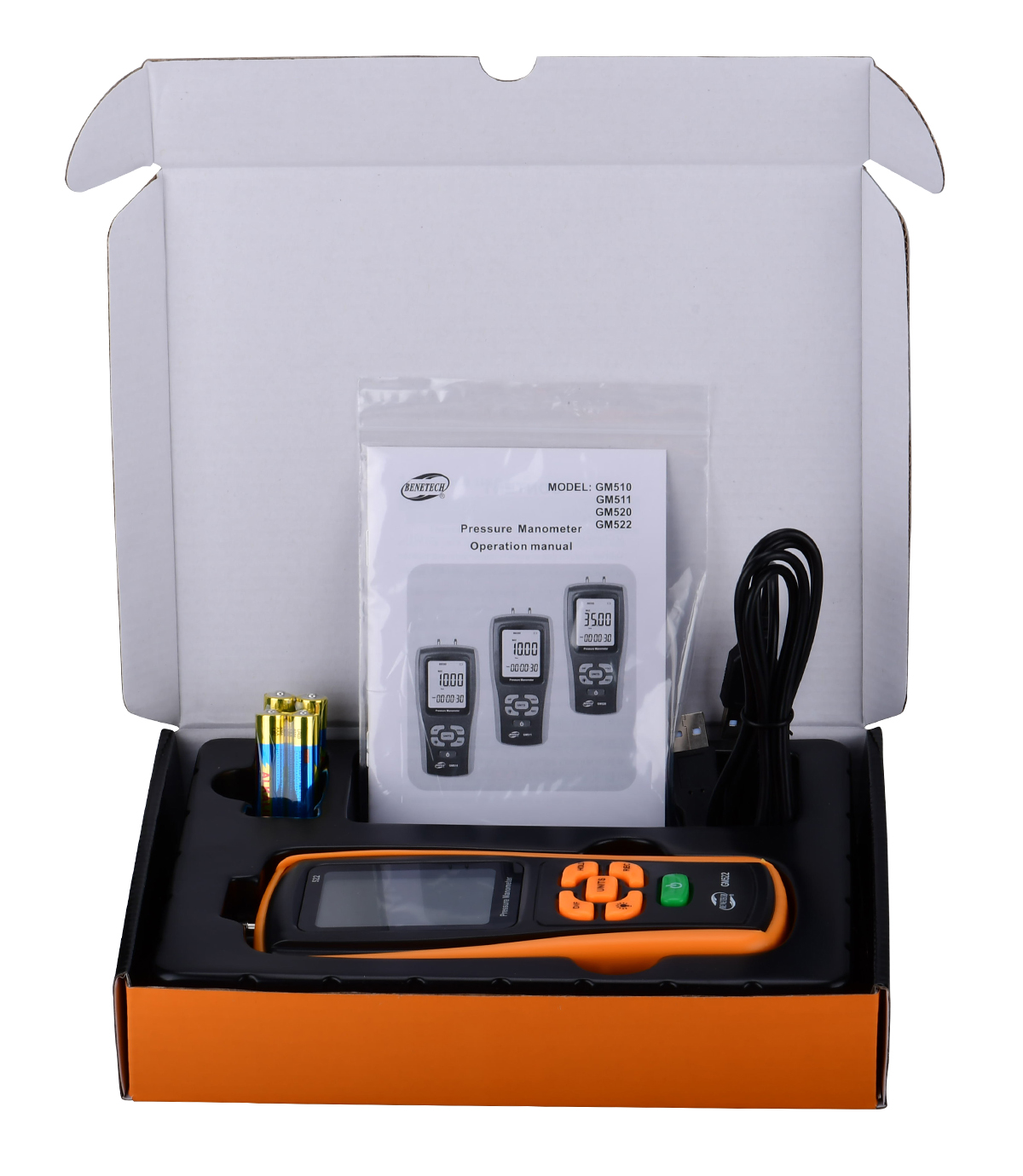

Pressure manometer*1
1.5V AAA battery*4
Operation manual*1
USB wire*1
CD*1
Translucent silica gel hose*2
Transparent PVC hose*2
