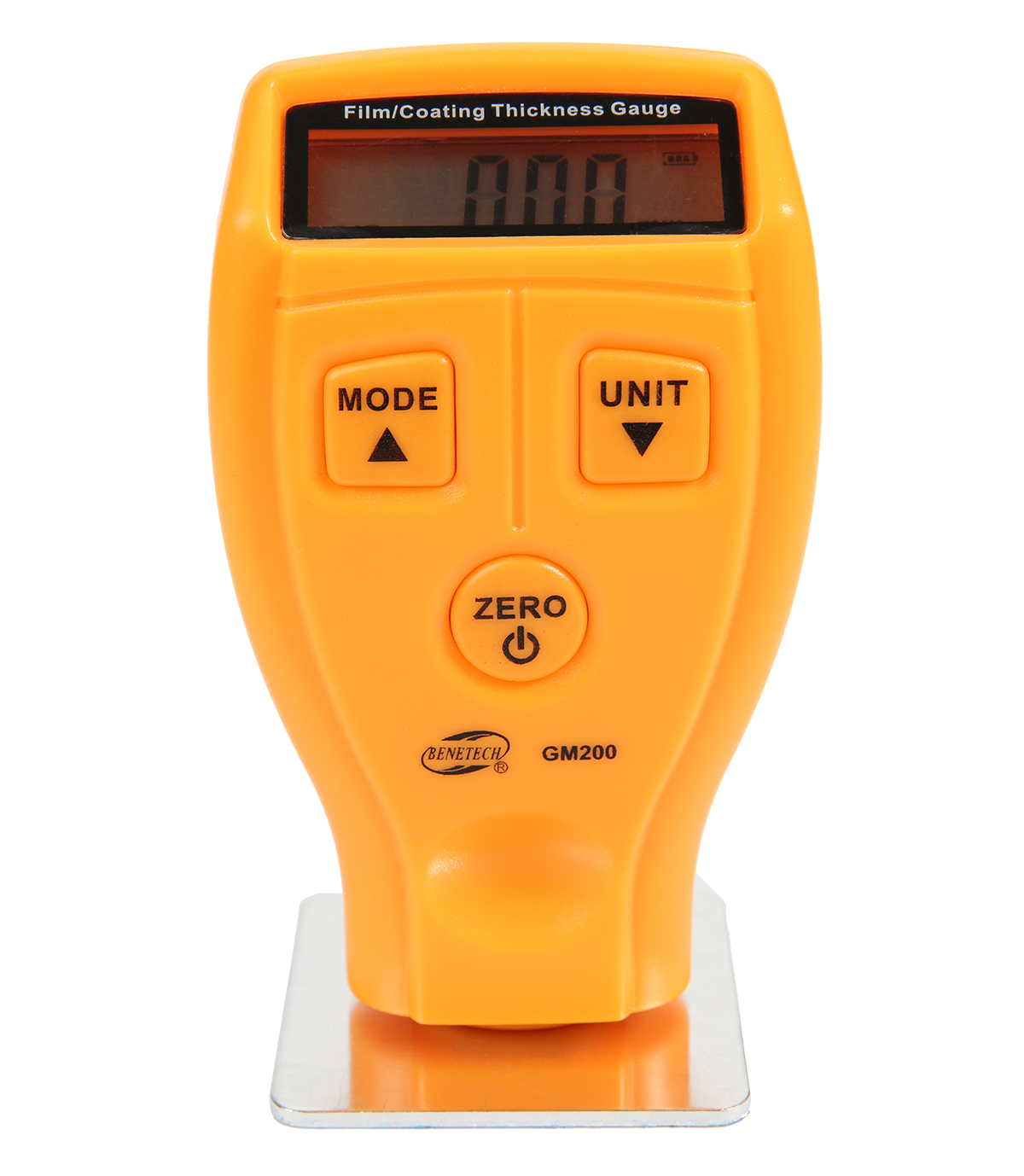

• Film/Coating Thickness Gauge possesses the following features:

  1.Thickness measurement of surface coatings on metal
  substrates
  2. Single measurement, continuous measurement and
  differential measurement available
  3. Zero-point calibration, 2-point calibration and basic
  calibration available
  4. Metric and imperial units of measurement optional
  5. Automatic shutdown


• Measurement ranges	0 ~1.80mm/0 ~71.0mil
  Resolution	0.01 mm/1mil
  Measurement error	±(3%H+0.03)mm
  Min. diameter of substrate	50mm
  Min. thickness of substrate	0.5mm
  Power supply	2*1.5V AAA batteries
  Operating temperature range	10 ~35℃
  Operating humidity range	10-80%RH
  Overall dimensions	61.98*30.57*104.99mm
  Weight	63.98g( excluding of batteries)



• Please refer to the manual for details

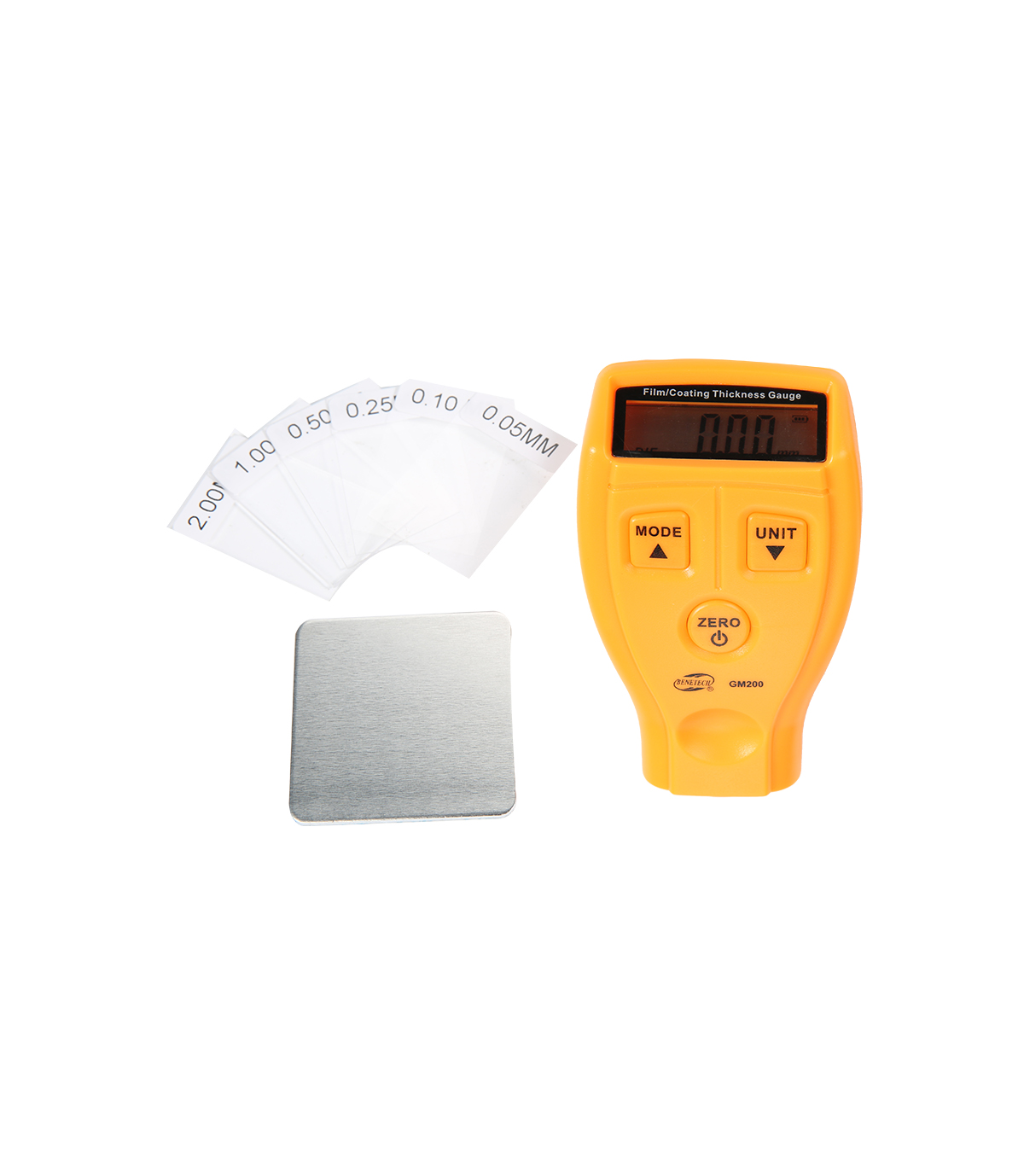

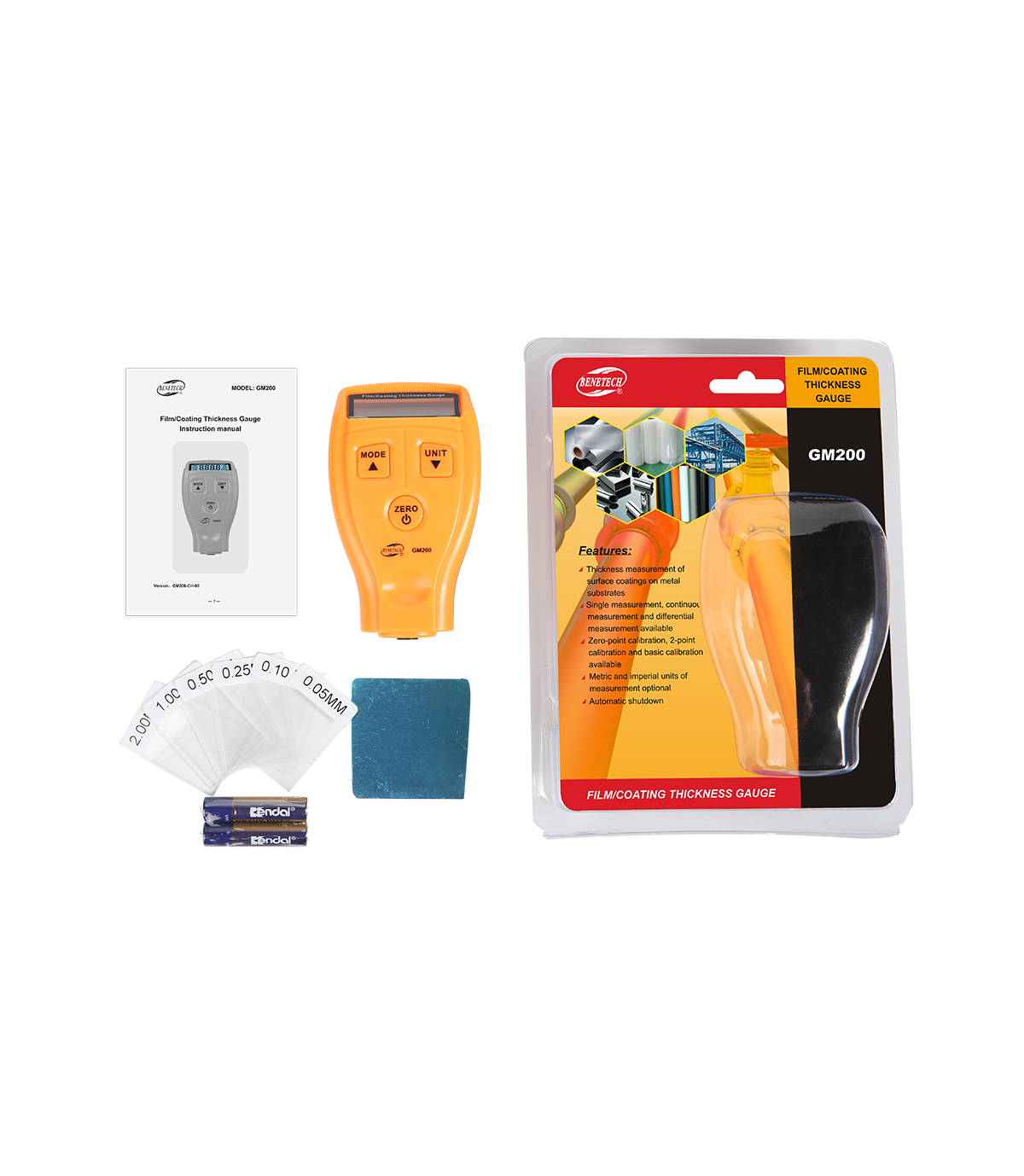

• Iron base*1

  Calibration sheet*7

  Blister packaging*1

  Instructions*1

  Host*1

  1.5V battery*2

•
•
