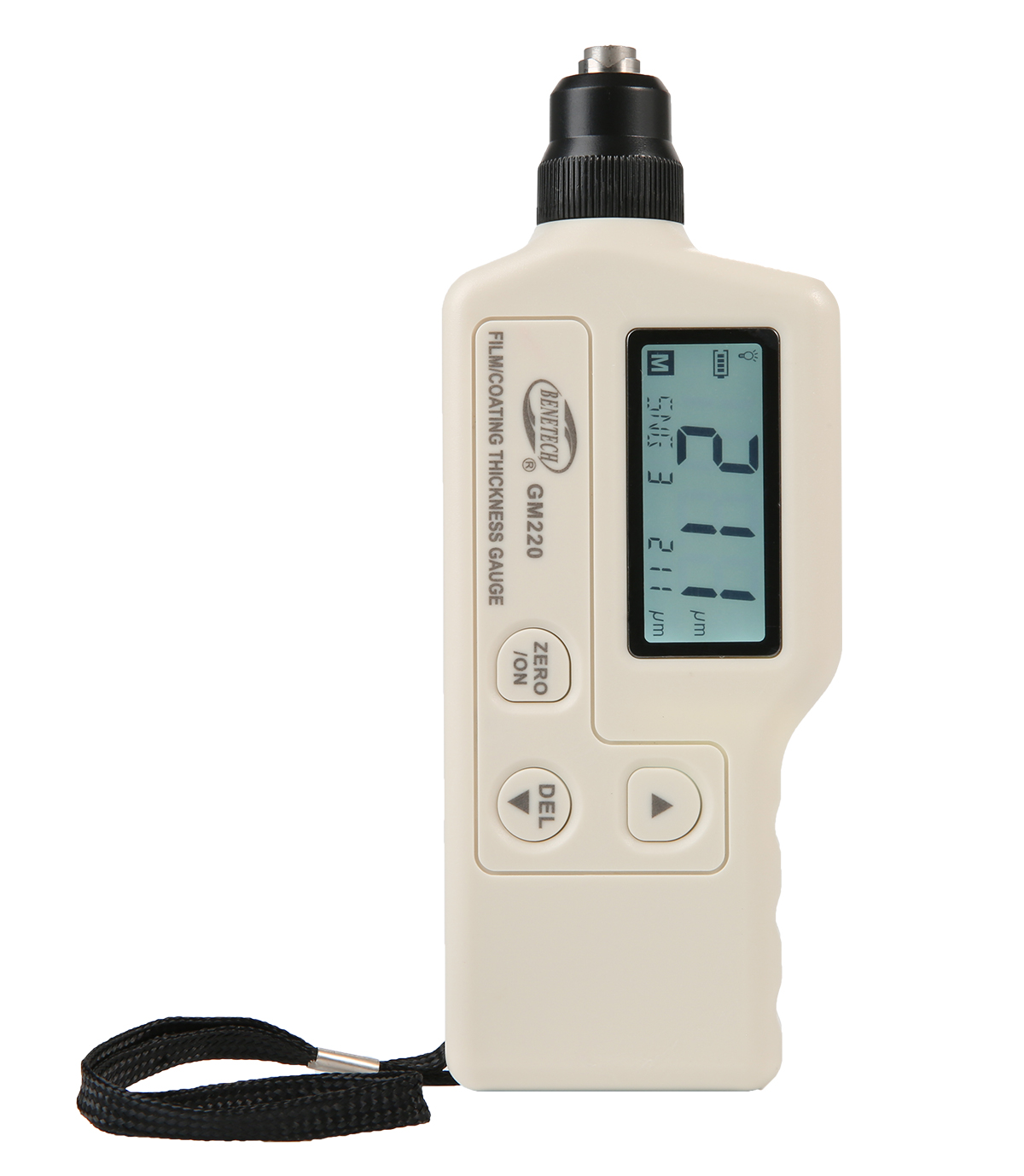

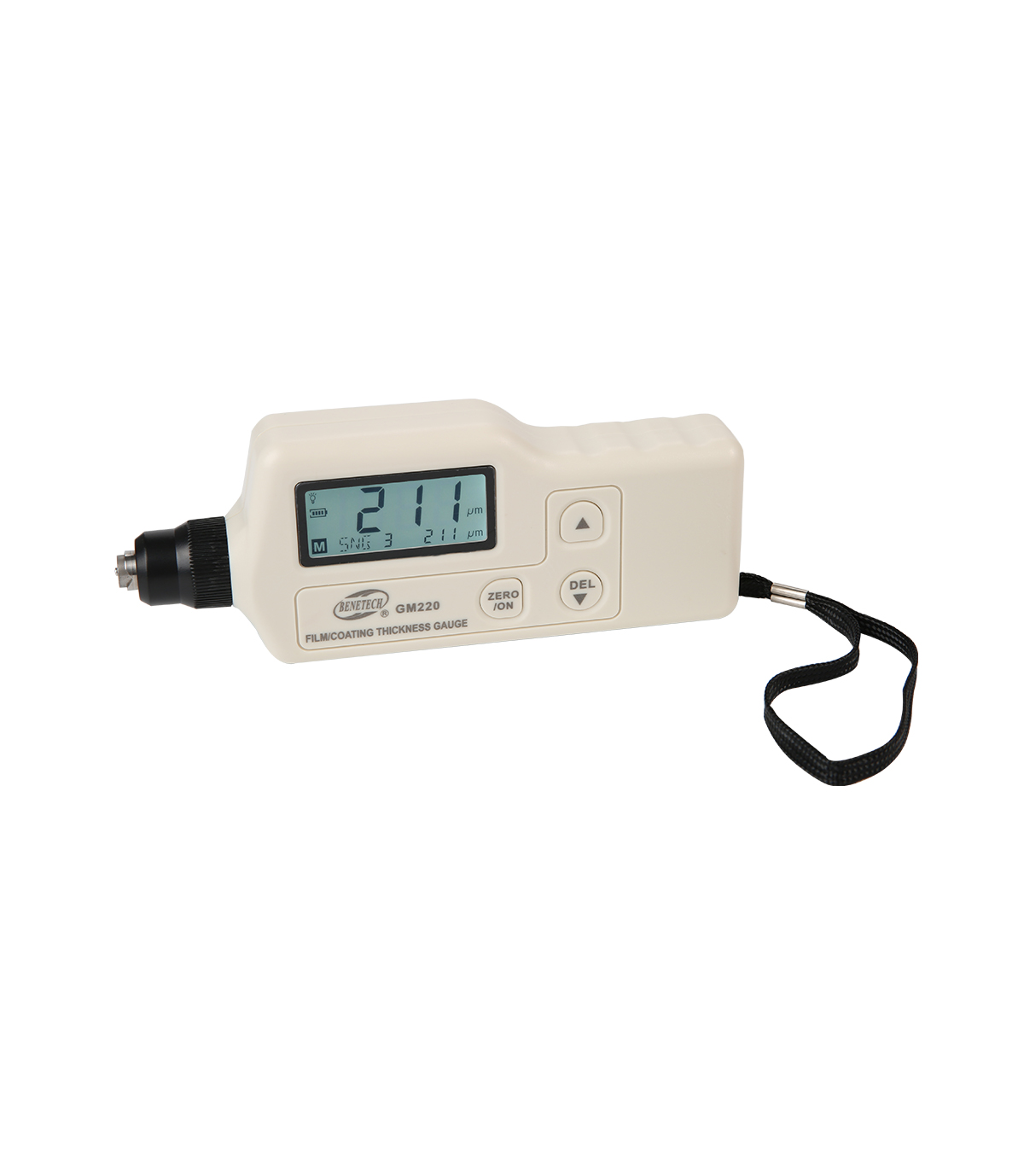

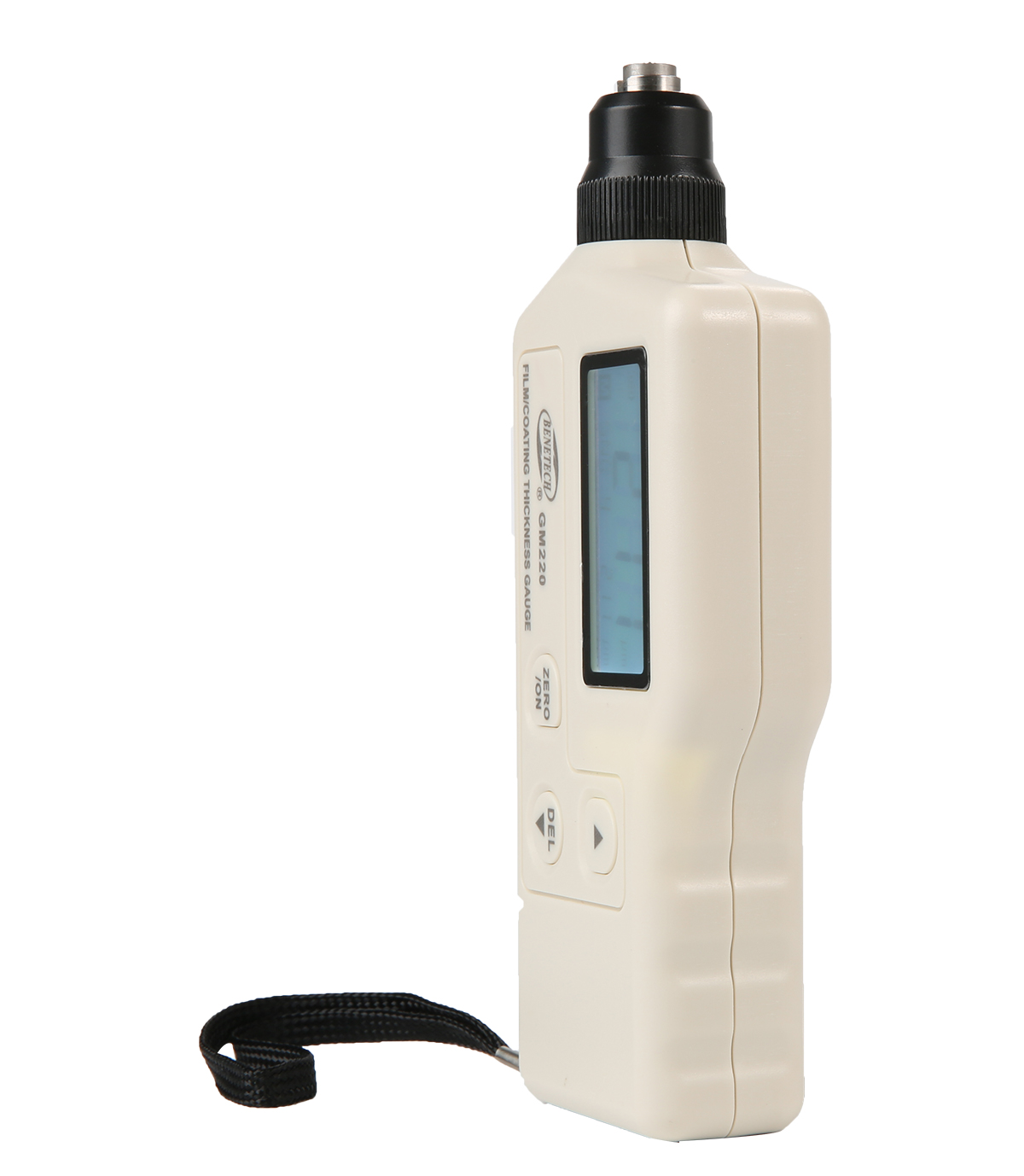

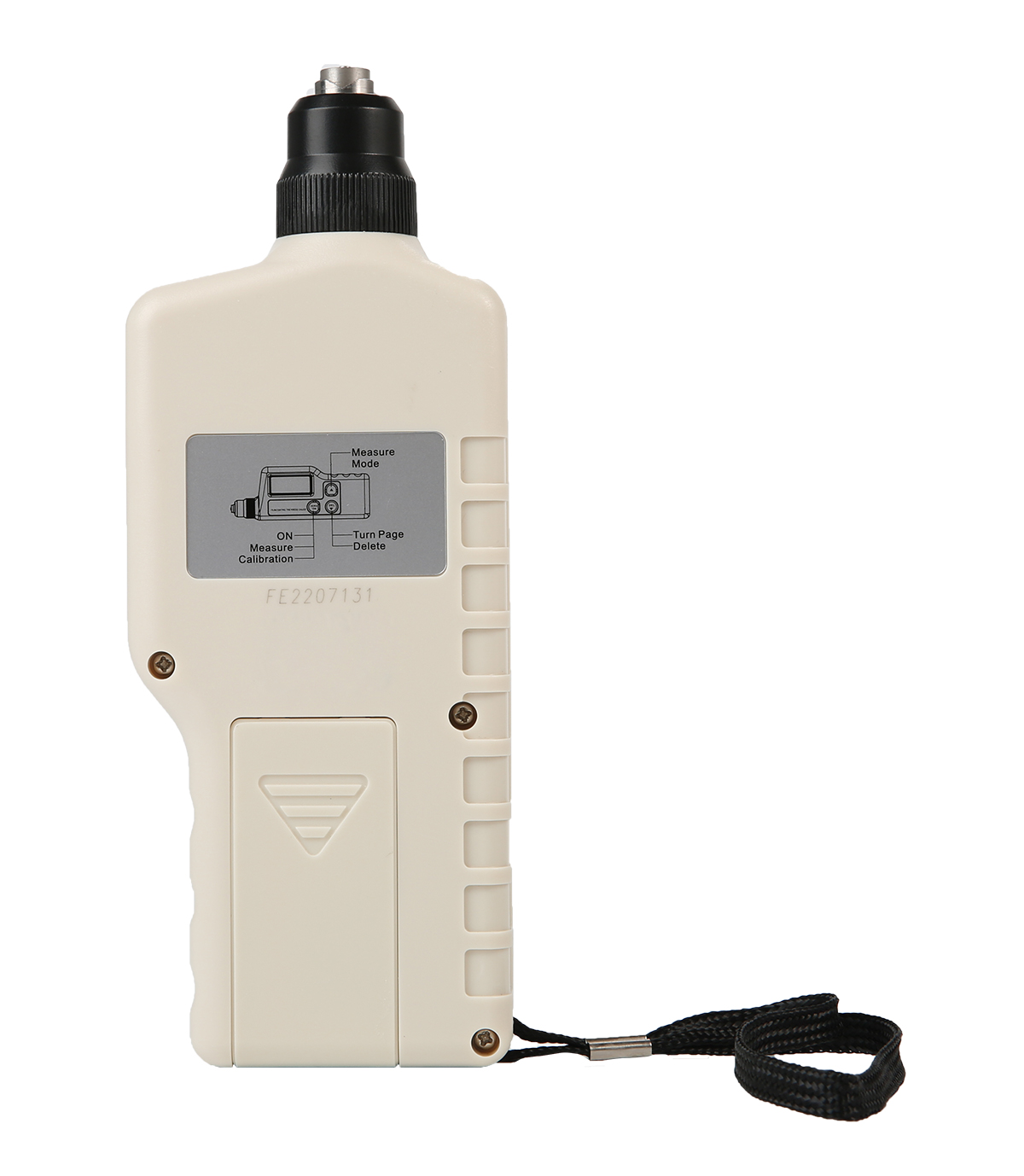

Film Coating Thickness Gauge GM220

Home >
Products

This portable product adopts magnetic induction technique for measurement. The compact design perform fast,precise and non-destructive digital coating measurement and plating on steel magnetic conductor. It is widely used on manufacturing, workshop, chemistry or quality control fields.

Features Specifications Applications Accessories Download Certification

sales@benetechco.com

Film/Coating Thickness Gauge possesses the following features:

1.LCD display measurement value and status.
2.Using Hi- sensibility sensor for precise measurement.
3.0 point, 2 point and basic, three different calibration
methods to make it easy to process the system quick
calibration.
4.Measure mode: Single, continually and difference .
5.Data record, recall and delete function.
6.Data analysis: Average, Maximum, Minimum, standard
deviation, and measure times.
7.Beep sounds indication.
8.Metric / Imperic unit selection.
9.Low Battery indication.
10.Auto power off .
11.LCD backlight .
12.Simple, compact structure and portable design.

Technical parameter	Technical specification
LCD display	3 1/2 display
Power supply	9V Alkaline battery
Operation current	About 14mA
Battery life	Continuously 20 hour
Auto power off	1 minute
LCD backlight function	7 second.
Operation temperature	0~40 ℃
Operation humidity	10~95% RH
Low battery indication	7.0V ± 0.2V
Product size	67x 30x 175mm
Weight	133G (without battery)

Please refer to the manual for details

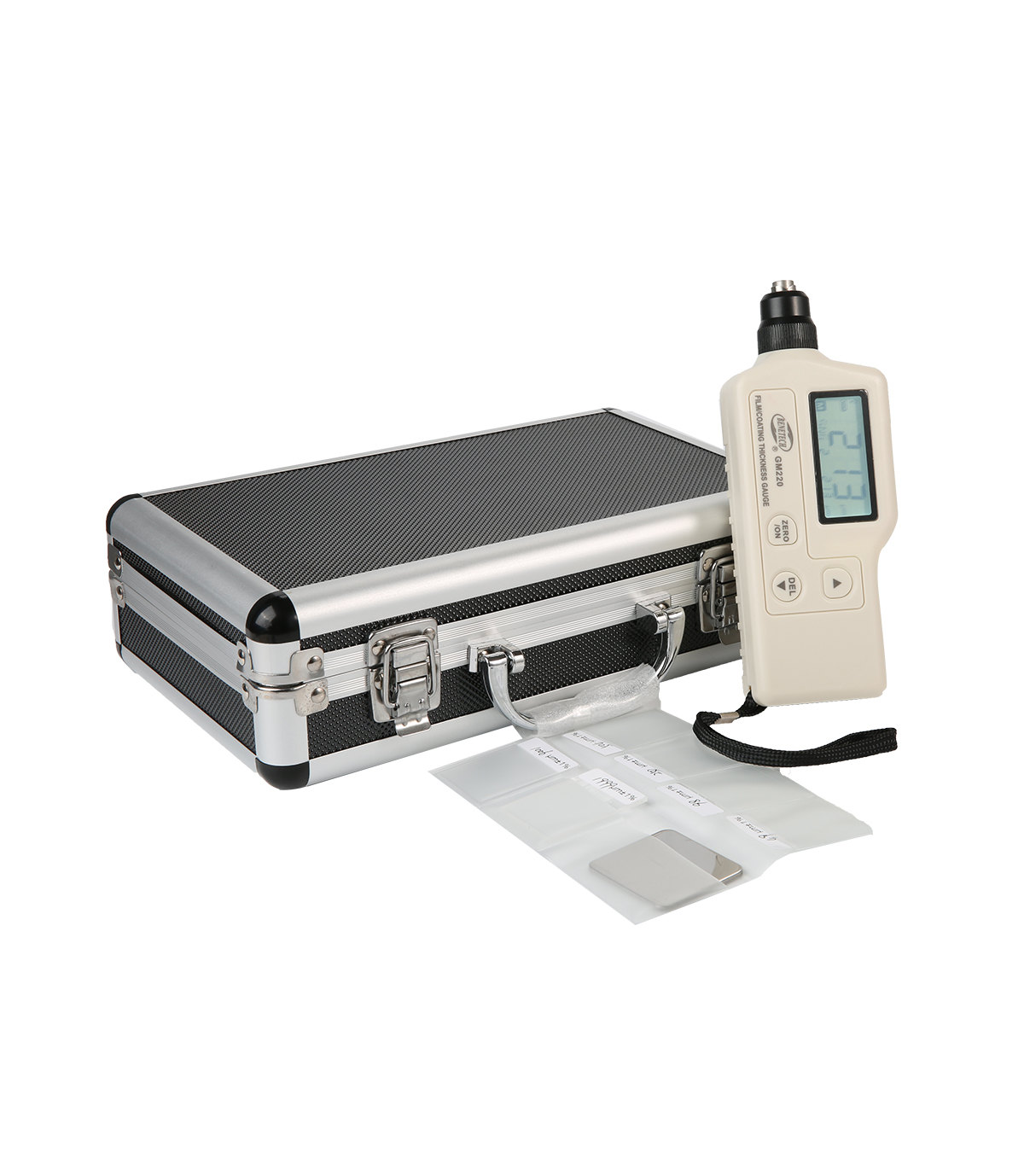

Digital film coating thickness gauge*1
9V battery*1
Instruction Manual*1
Standard sheet gauge*6
Iron base material for calibration*1
PP Packing Box*1
