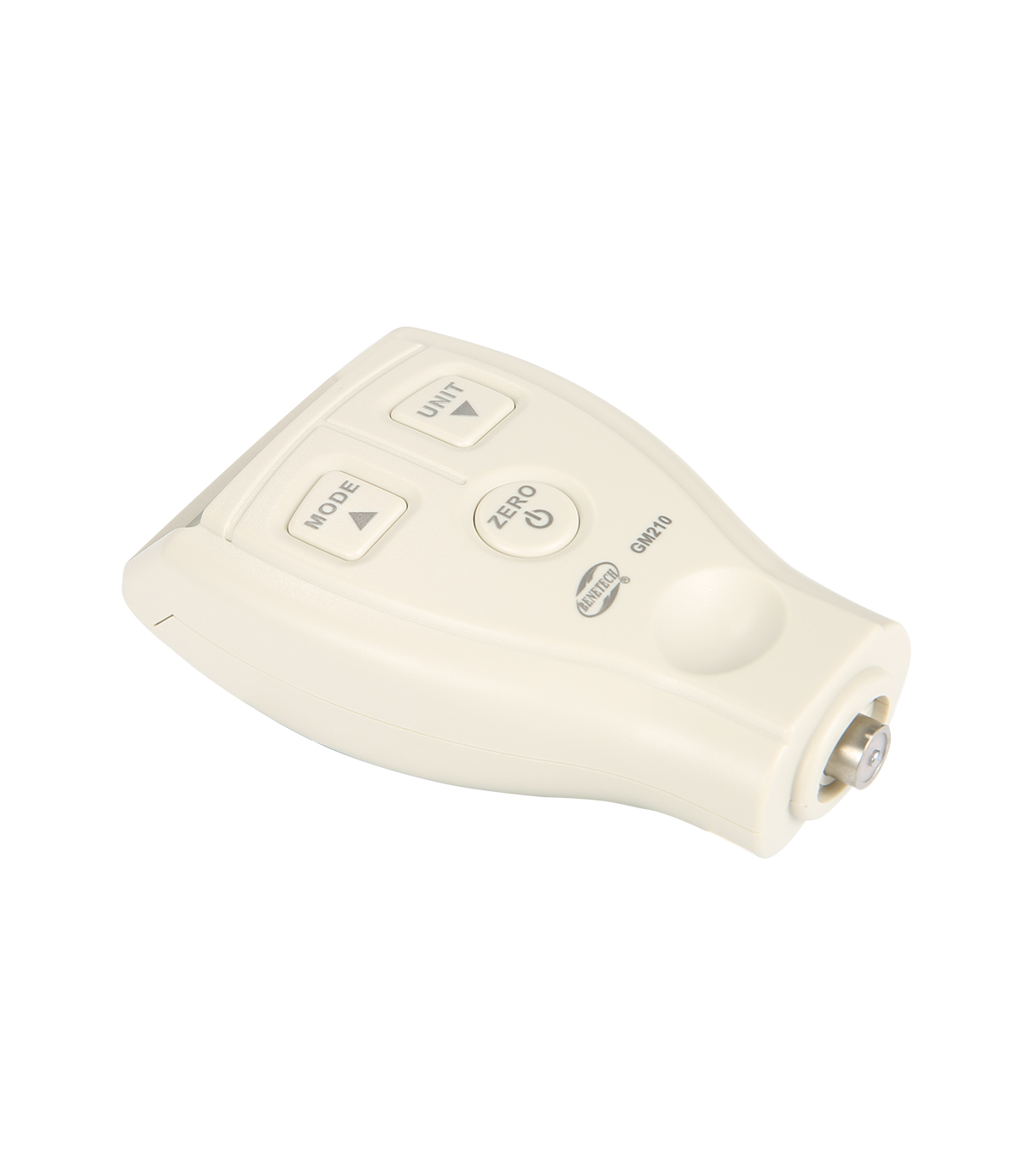

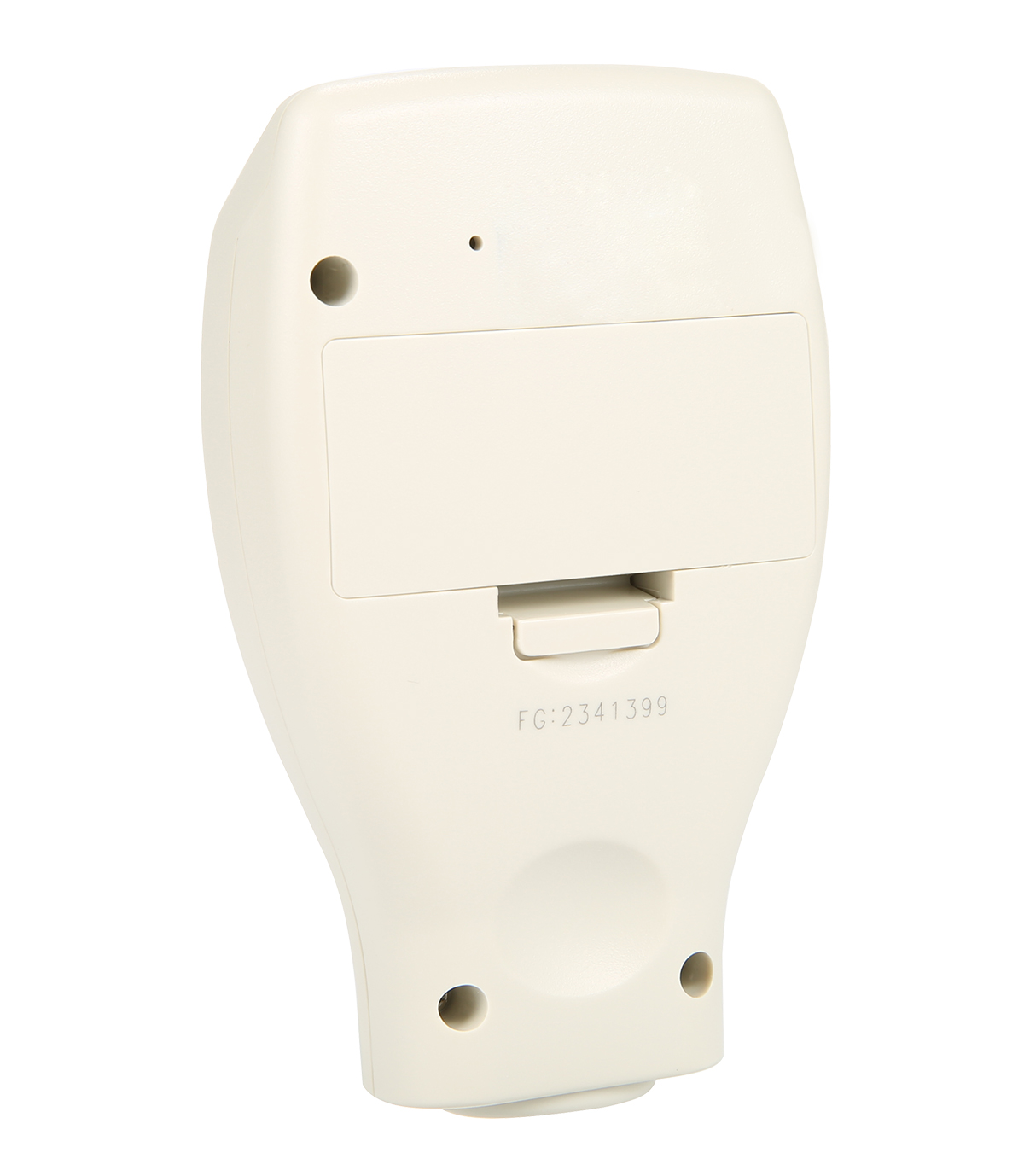

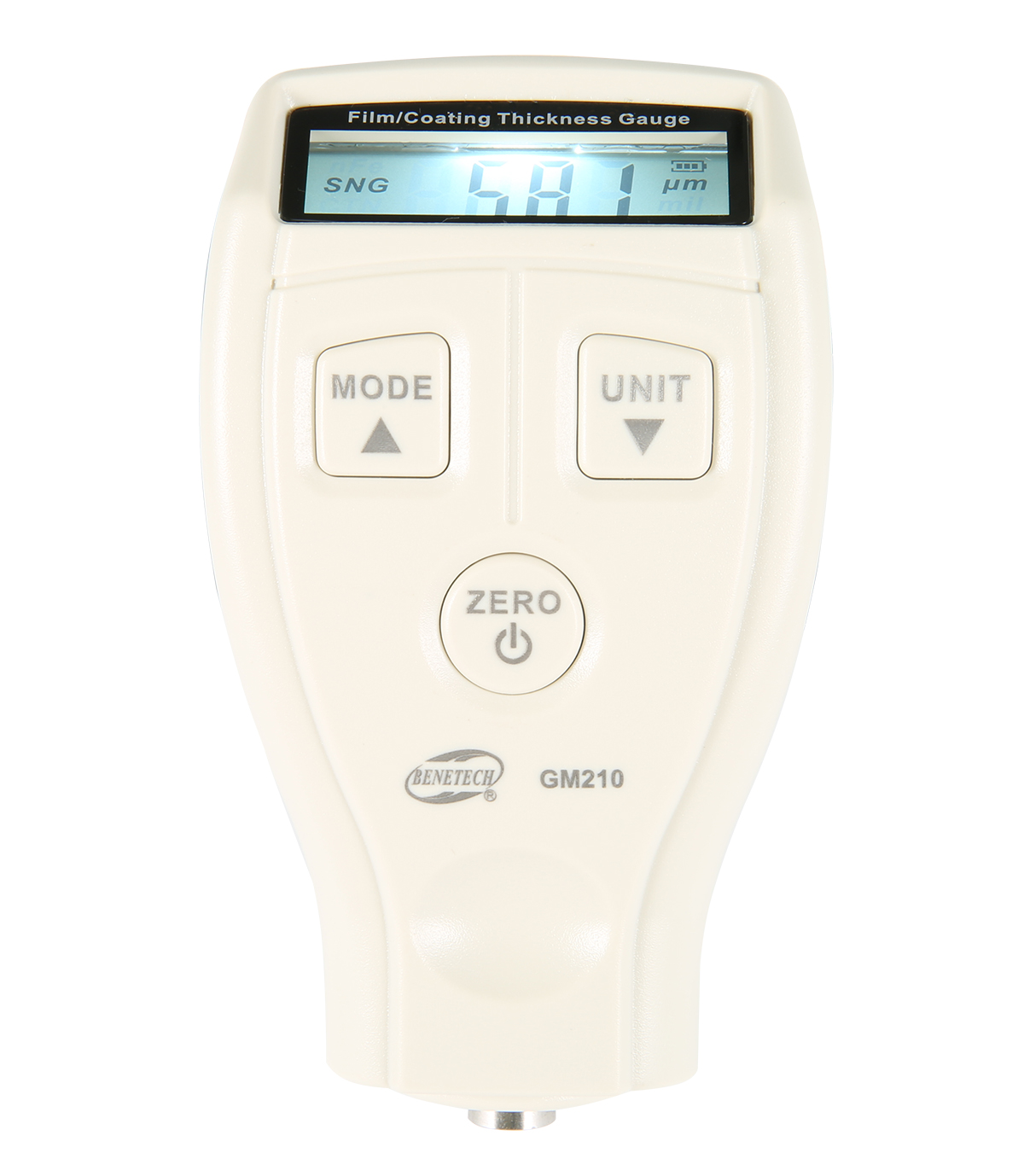

This product is a portable coating thickness gauge for fast,accurate and nondestructive measurement of the thickness of non-magnetic coatings (such as paint, electroplated coating and film) on magnetic metal substrates. This product has seen wide application in manufacture, metal working, chemical industry,commodity inspection and other fields
Film/Coating Thickness Gauge possesses the following features:
1. Thickness measurement of non-magnetic surface
coatings on magnetic metal substrates
2. Single measurement, continuous measurement
and differential measurement available
3. Zero-point calibration, 2-point calibration and basic
calibration available
4. Metric and imperial units of measurement optional
5. LCD backlight
6. Automatic shutdown
Measurement ranges |
0~1800μm/0~70.9 mil |
Resolution |
0.1 μm/1μm/0.1mil |
Measurement error |
±(3%H+1μm) |
Min. diameter of substrate |
φ 12mm |
Min. thickness of substrate |
0.5mm |
Min. curvature radius of convex substrate |
2mm |
Min. curvature radius of concave substrate |
11mm |
Power supply |
2*1.5V AAA batteries |
Operating temperature range |
0~40℃ |
Operating humidity range |
10~95%RH |
Overall dimensions |
61.98*30.57*107.99mm |
Weight |
63.98g( excluding of batteries) |

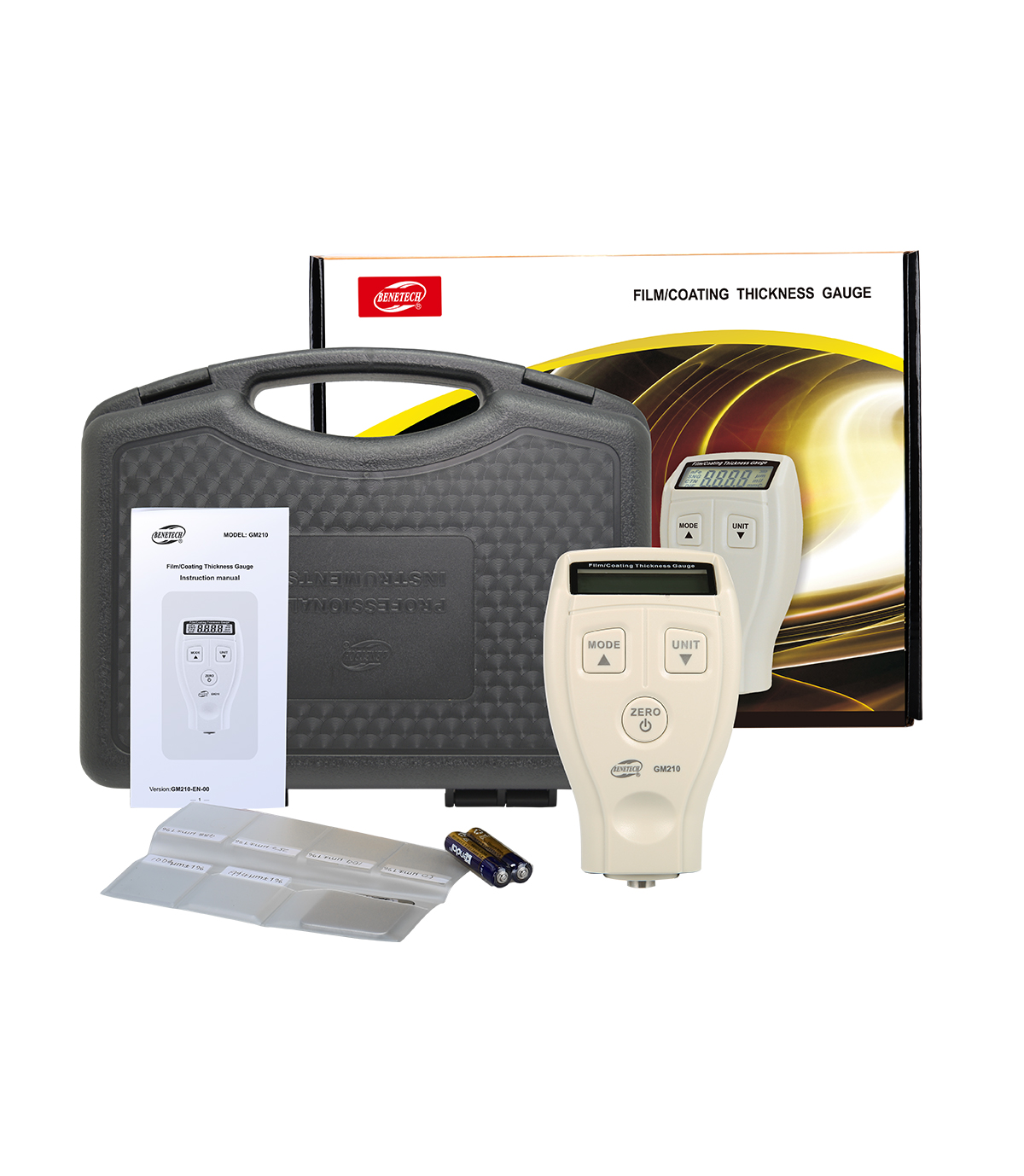

1.5V AAA battery*2
Host*1
Calibration sheet*6
Iron base*1
Aluminum base*1
Instructions*1
Color box*1
PP box*1
