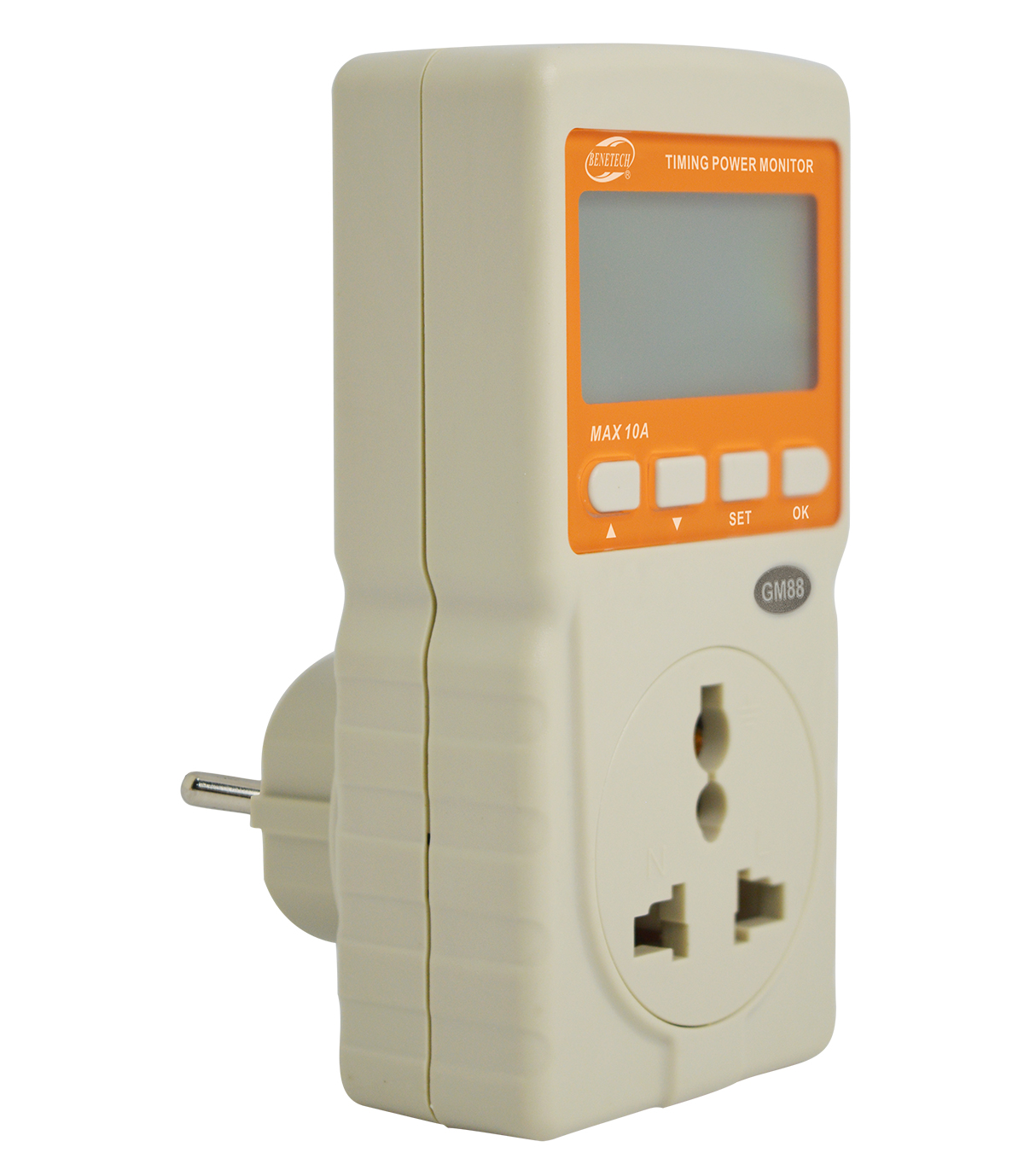

• Timing Power Monitor possesses the following features:

  1. Monitor the current active power value
  2. Monitor current voltage/current/frequency
  3. Record the total time of electricity consumption
  4. Record the total electricity consumption
  5. Calculate carbon dioxide emissions
  6. Power factor detection
  7. Load alarm threshold can be set
  8.Clock display, time switch

  9.Overcurrent protection, buzzer alarm

• Applicable power supply	220V 50Hz
  Working voltage range	180.0V~260.0V
  Maximum rated current	10A
  Maximum power	2200W
  Power measurable range	0.2W~2200W
  Maximum accumulated electric quantity	99999KWh
  Maximum accumulated time	99999minutes
  Power factor	0.001-1.000
  Over current protection	When the current is 12A, the electricity will be cut off in 6 seconds. When the current is 15A, the electricity will be cut off in 2 seconds.
  Time switch appointment	20 groups on-off control period can be set
  Backlight function	ON/OFF can be set
  Precision	Level 1
  Constant	6400imp/kWh
  Power dissipation	<1W
  Working temperature	0~ 45℃
  Storage temperature	-20~ 60℃
  Dimension	60.0*55.7*120.0mm
  Weight	138.5g



• Please refer to the manual for details
• Instructions*1
  Blister packaging*1
  Host*1

•
•
