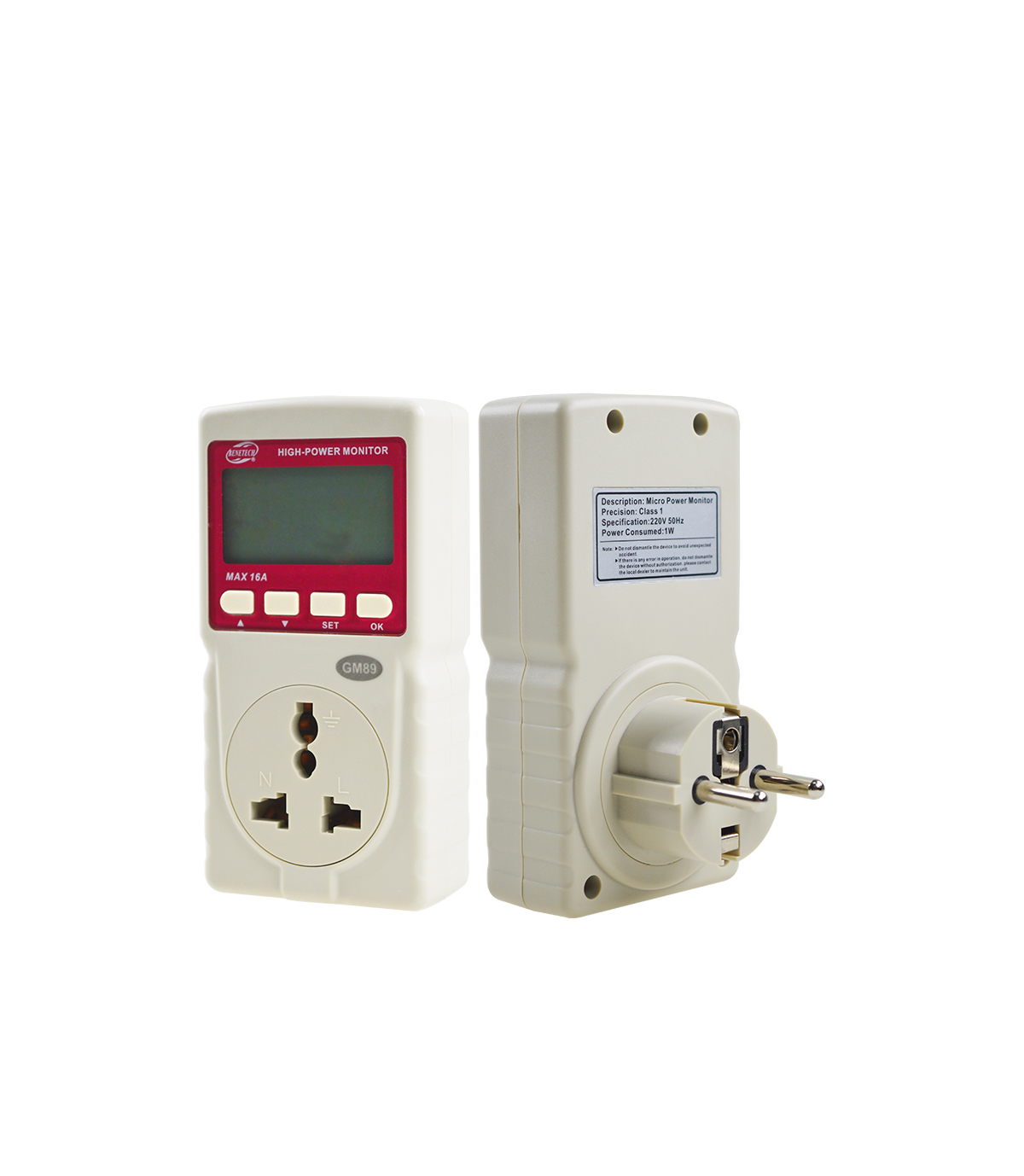

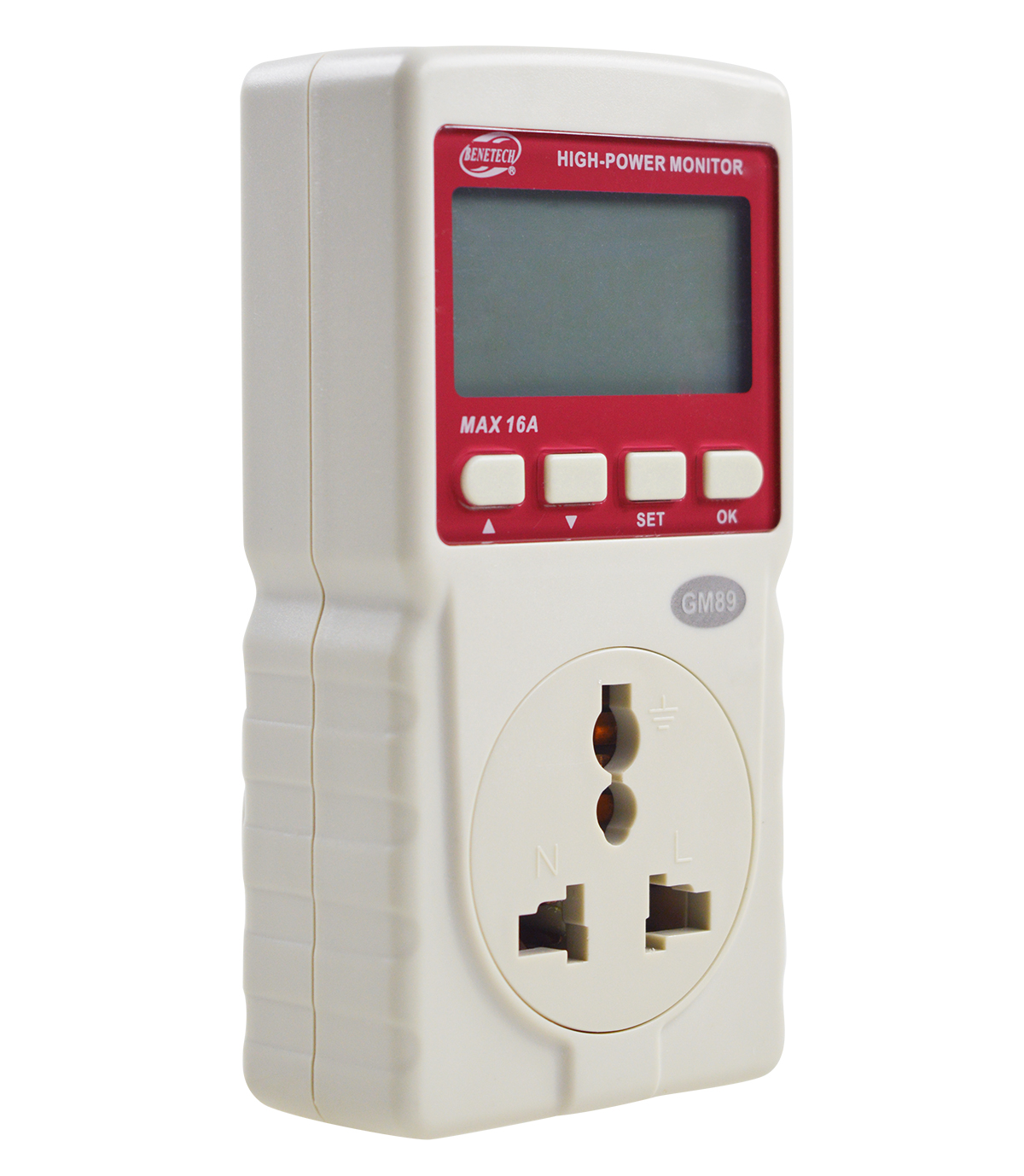

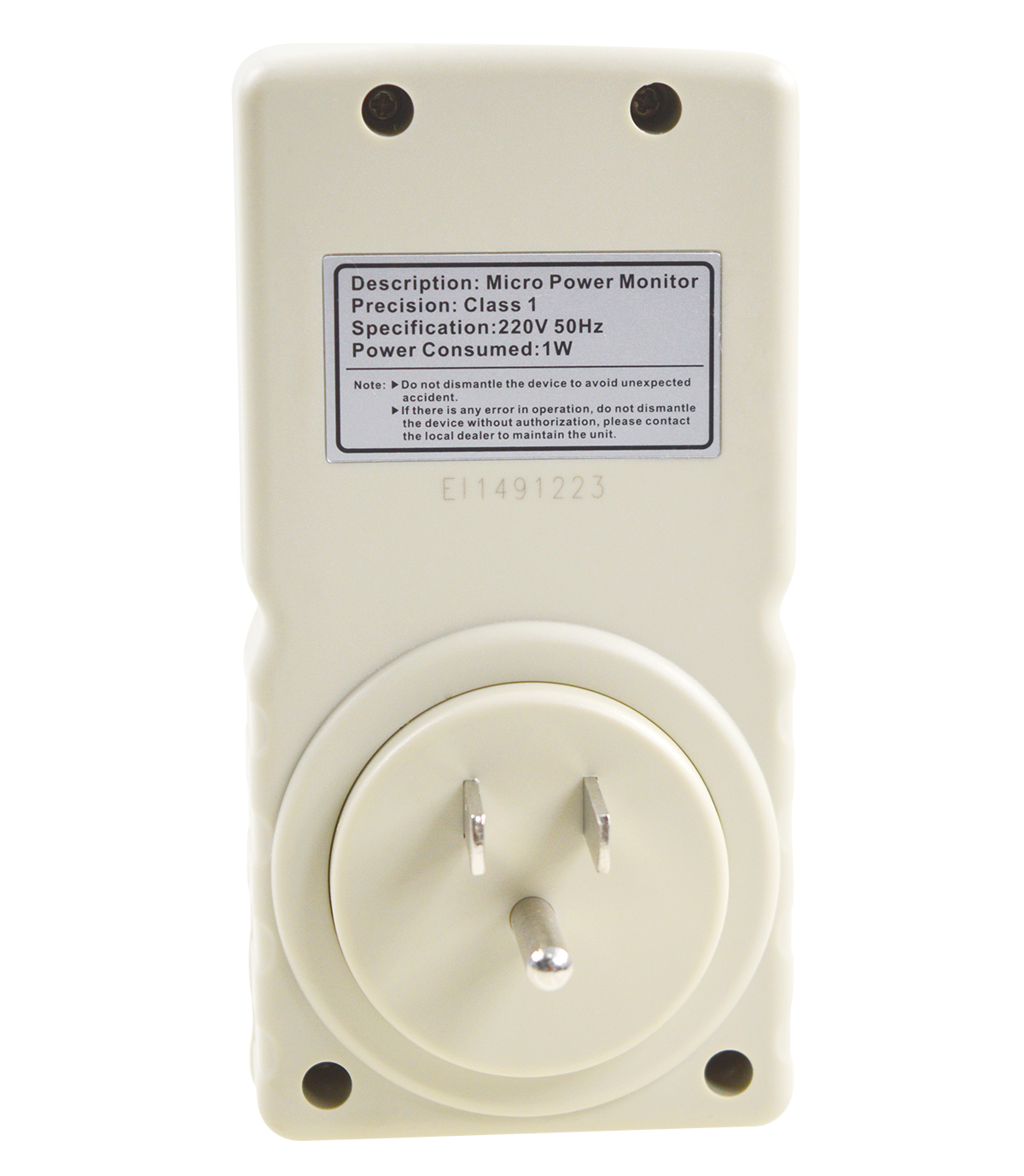

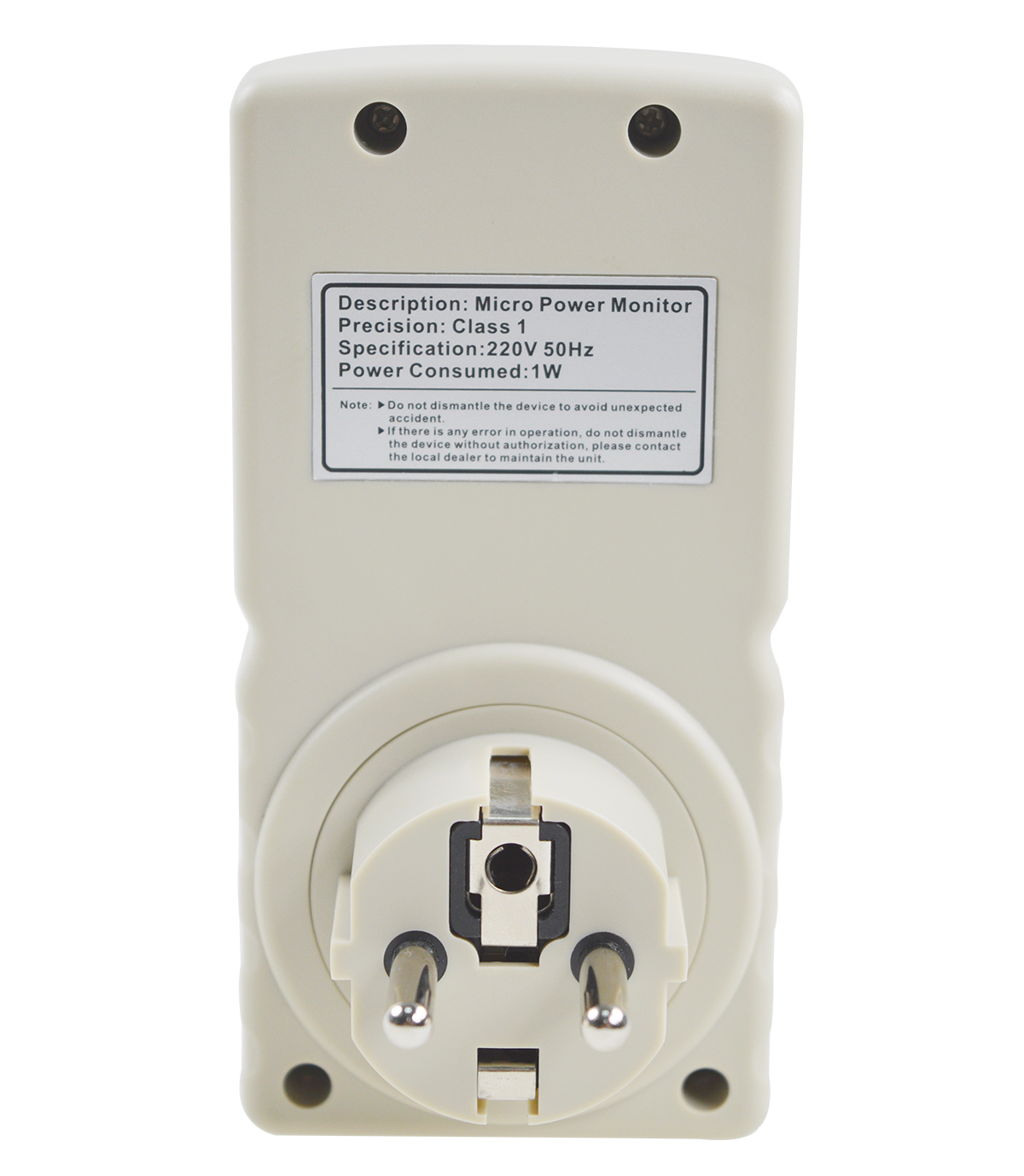

• High-Power Monitor Max16A possesses the following features:

  1. Monitor the current active power value
  2. Monitor current voltage/current/frequency
  3. Record the total time of electricity consumption
  4. Record the total electricity consumption
  5. Calculate carbon dioxide emissions
  6. Power factor detection
  7. Load alarm threshold can be set


• Rated voltage	220V 50Hz
  Measurable voltage range	180.0V~260.0V
  Rated current	16A
  Measurable current range	0.00A~16.00A
  Maximum power	3520W
  Measurable power factor range	0.1W~3520W
  Measurable power range	0.00~9999KWh
  Power factor	0.001~1.000
  Measurable range of CO2 displacement	0.00~9999kg
  Accuracy	1.0 level
  constant	6400imp/kWh
  Power consumption	<1W
  Operating temperature	0~45℃
  storage temperature	-20~60℃
  Backlight function	On/off can be set
  Product Size	319*60*42mm
  Wire length	150mm
  Wire diameter	10.5mm
  weight	129.6g



• Please refer to the manual for details

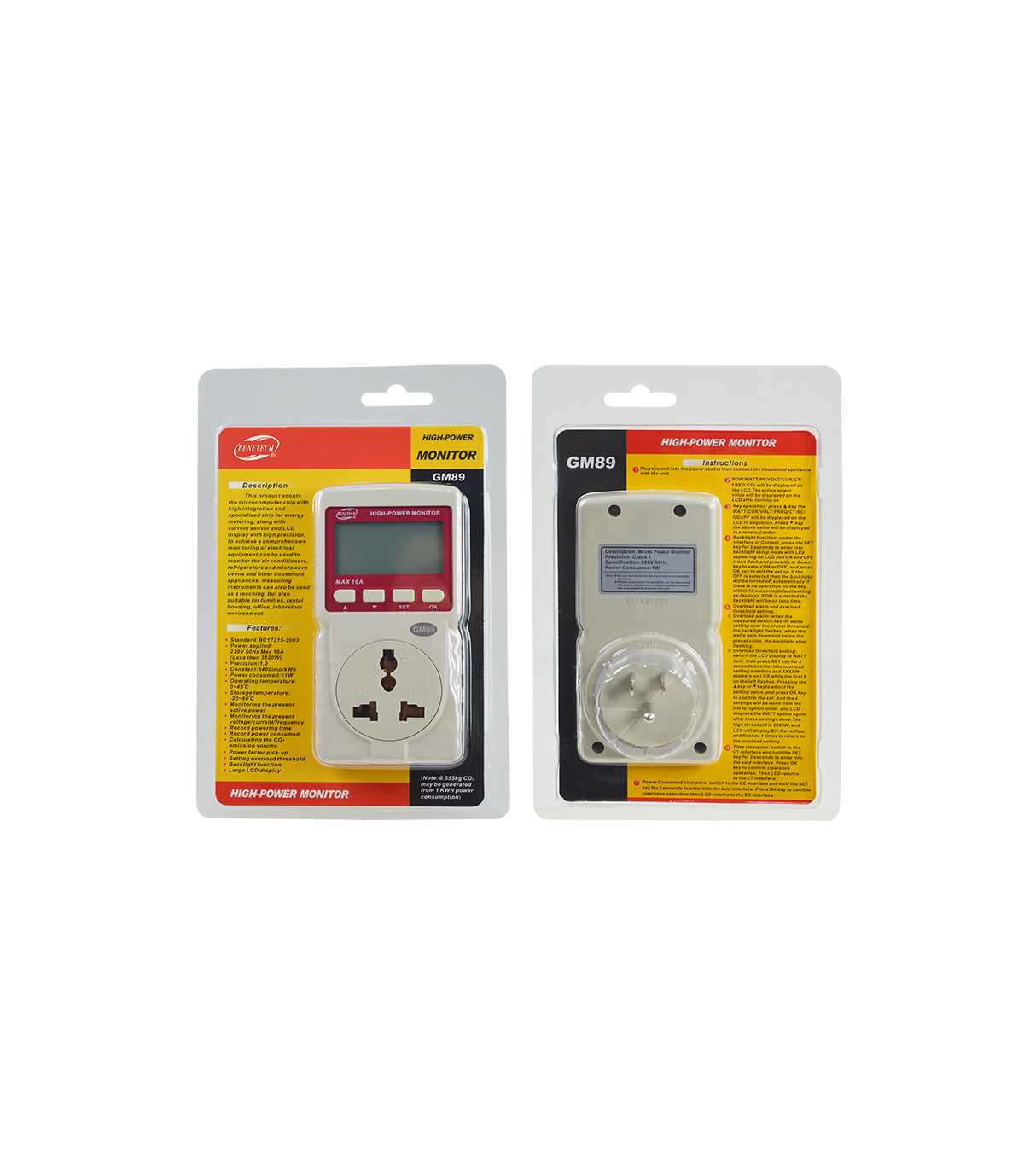

• Blister packaging*1
  Host*1
  Instructions*1

•
•
