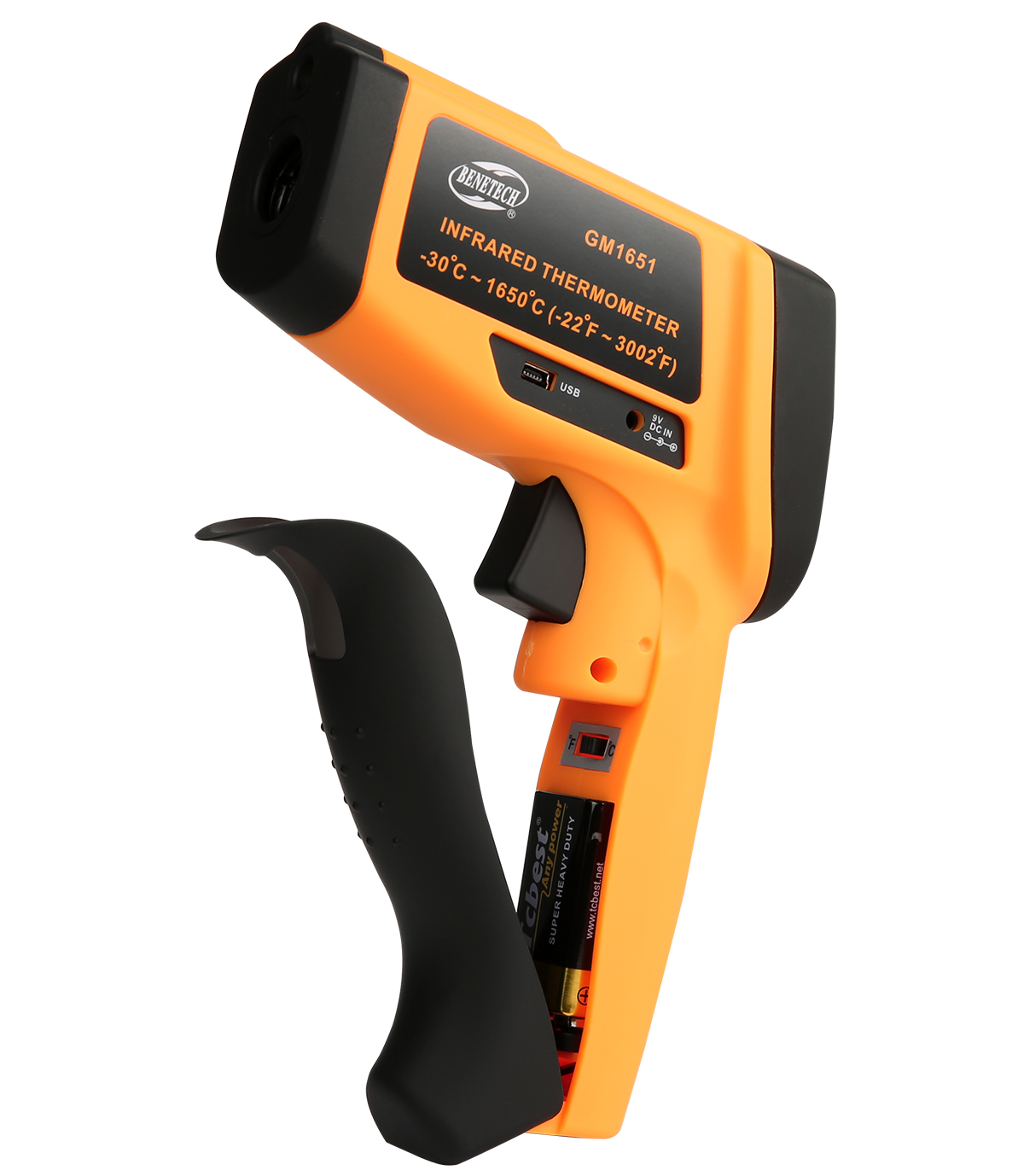

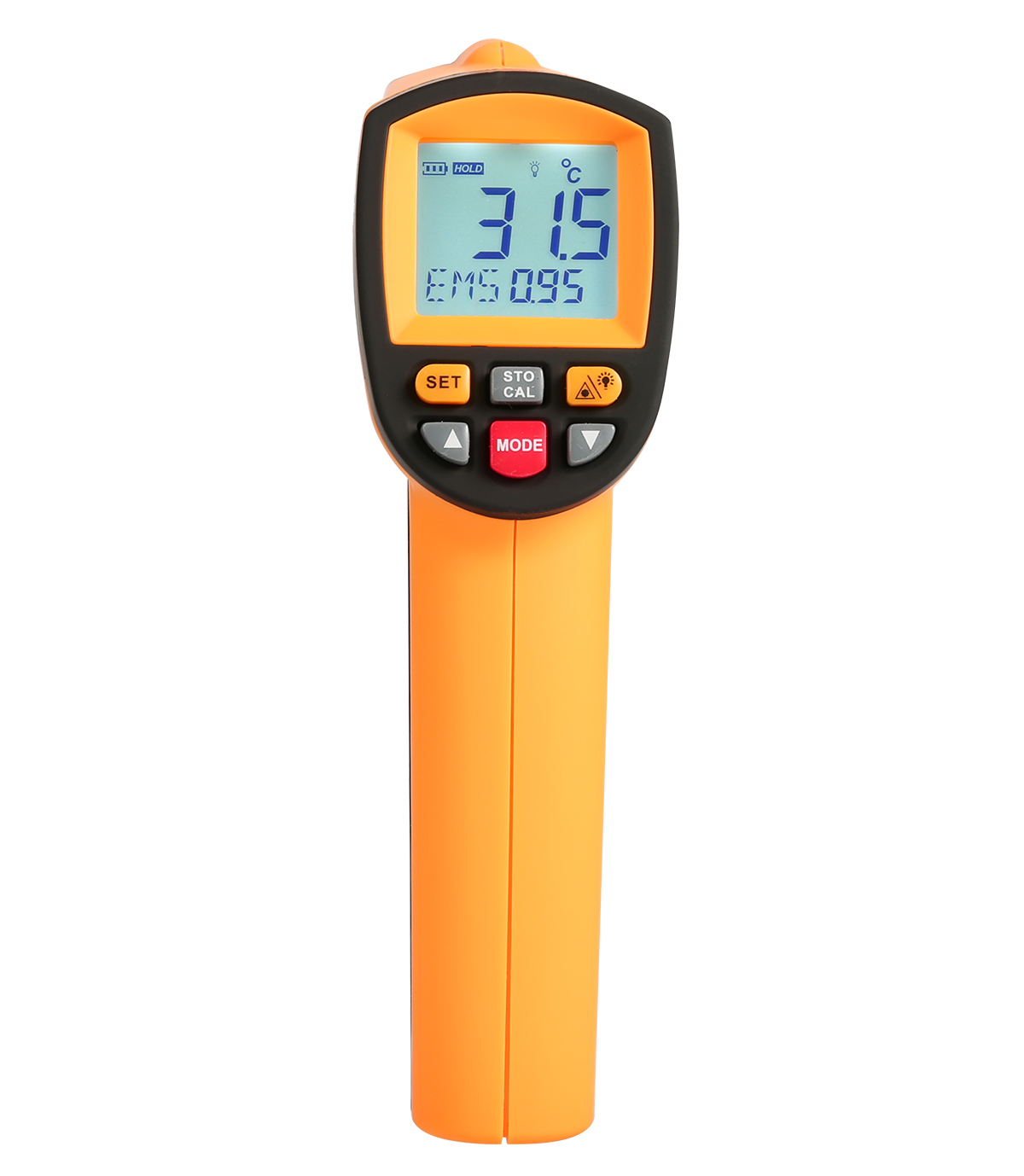

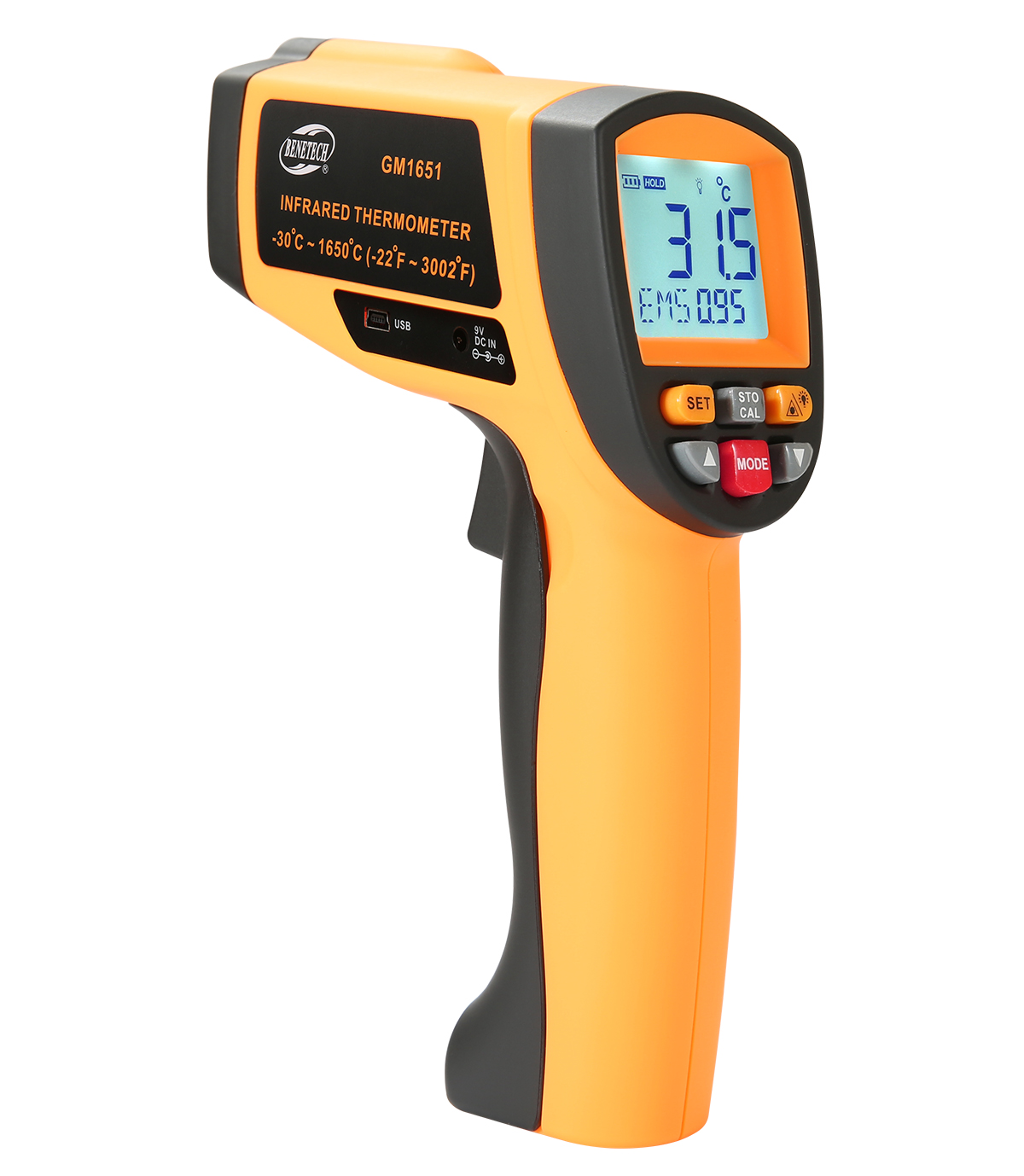

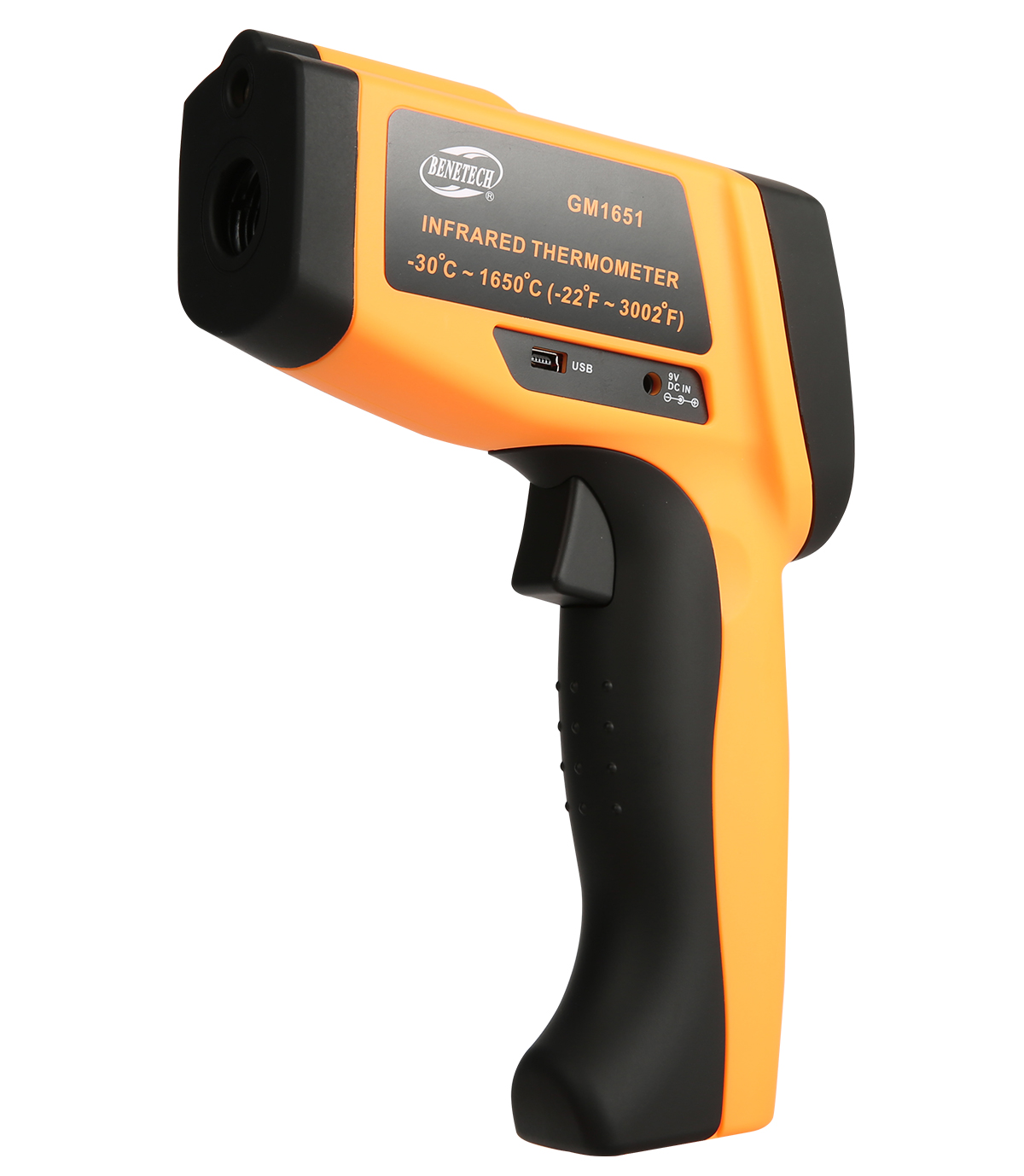

Infrared thermometer GM1651

This machine consists of optical system, photoelectric sensor, signal amplifier, signal processing

Circuit and LCD display components. Optical system Infrared energy to the photoelectric sensor,

the photoelectric sensor converts the energy into the corresponding Electrical signal, which is

converted into reading through signal amplifier and signal processing circuit It is displayed on

the LCD. The machine also has a USB data output function, so that your measurement The

volume is more handy!

Features Specifications Applications Accessories Download Certification

Temperature range	-30~1650℃ (-22~3002℉)
Accuracy	0~1650℃(32~3002℉) :±1.5℃(±2.7℉) or±1.5% -30~0℃(-22~32℉):±3℃ (±5℉) Whichever is greater
Resolution	0.1℃ or 0.1℉
Repeatability	1% of reading or 1℃
Response time	0.5~0.8 Sec, 95% response
Spectral response	8-14 um
Emissivity	0.10~1.00 Adjustable (0.95 Preset)
Distance to Spot size	50:1
Operating Temperature	0 ~40℃ (32 ~ 104℉)
Operating Humidity	10~95%RH non-condensing， up to 30℃(86℉)
Storage Temperature	-20 ~ 60℃ (-4~140℉)
Power	9V Alkaline or NiCd battery
Typical battery life (Alkaline)	Non-laser mode: 22 hrs; Laser Models:12 hrs
Weight	270g
Dimension	14160200mm
