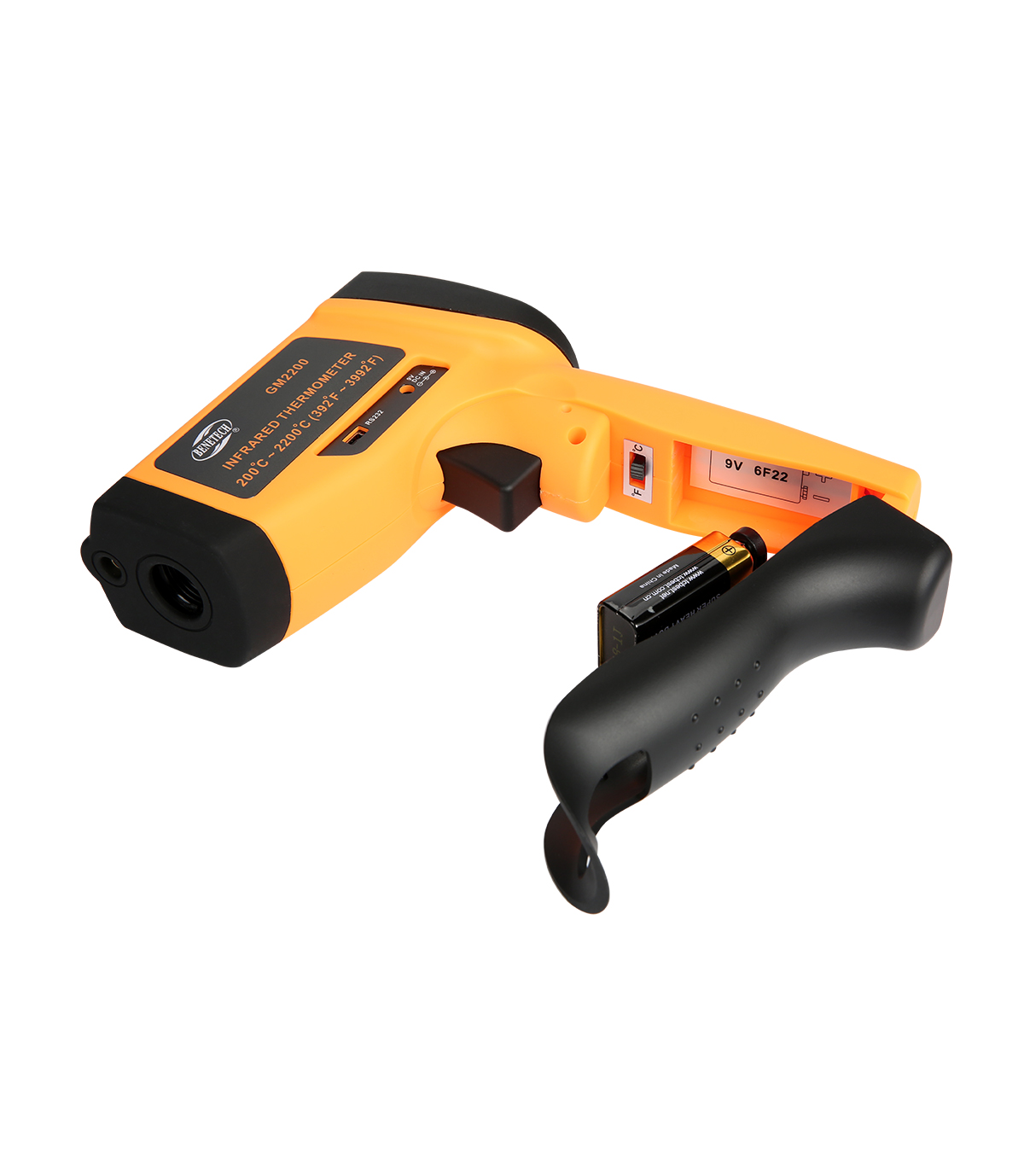

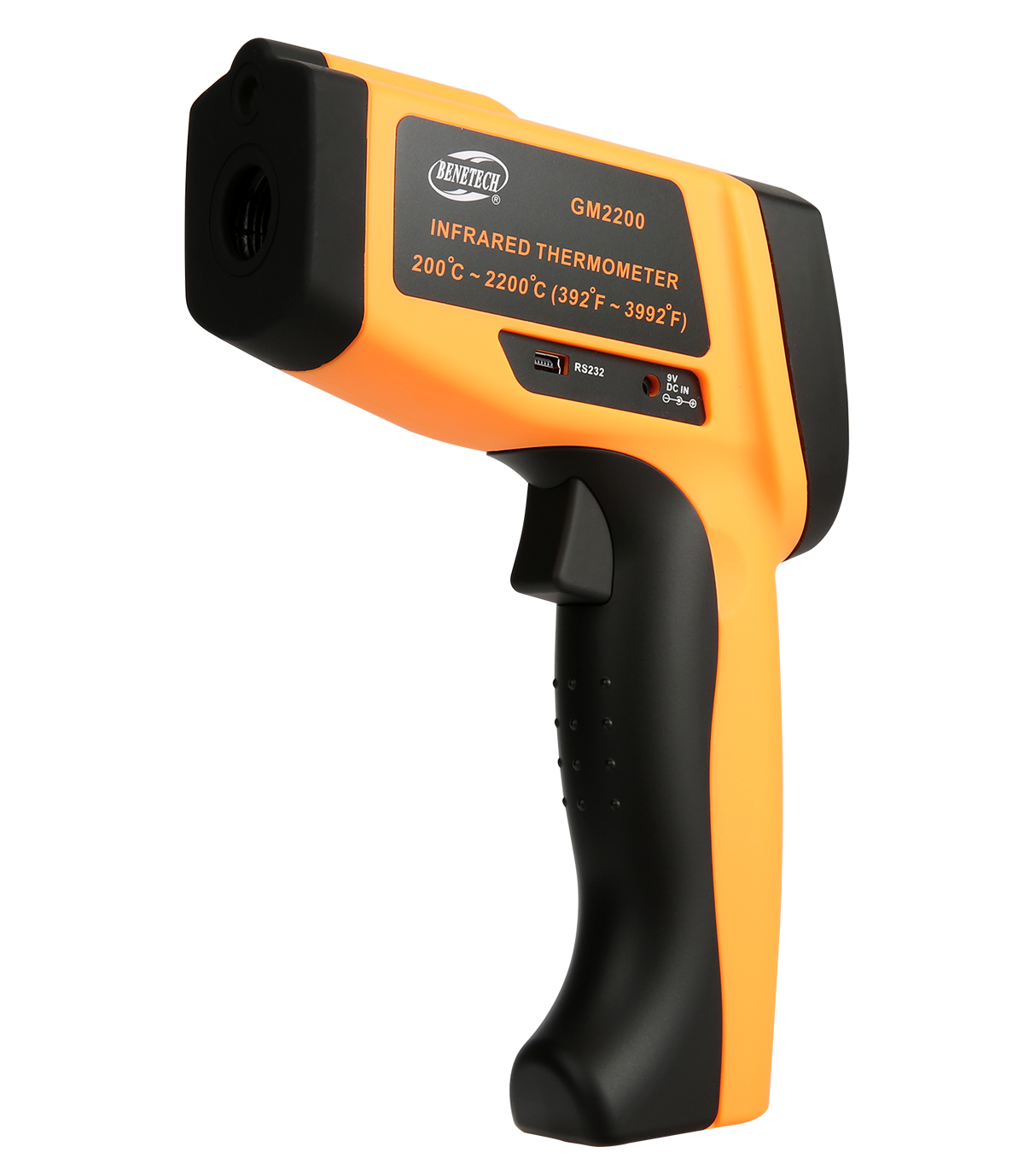

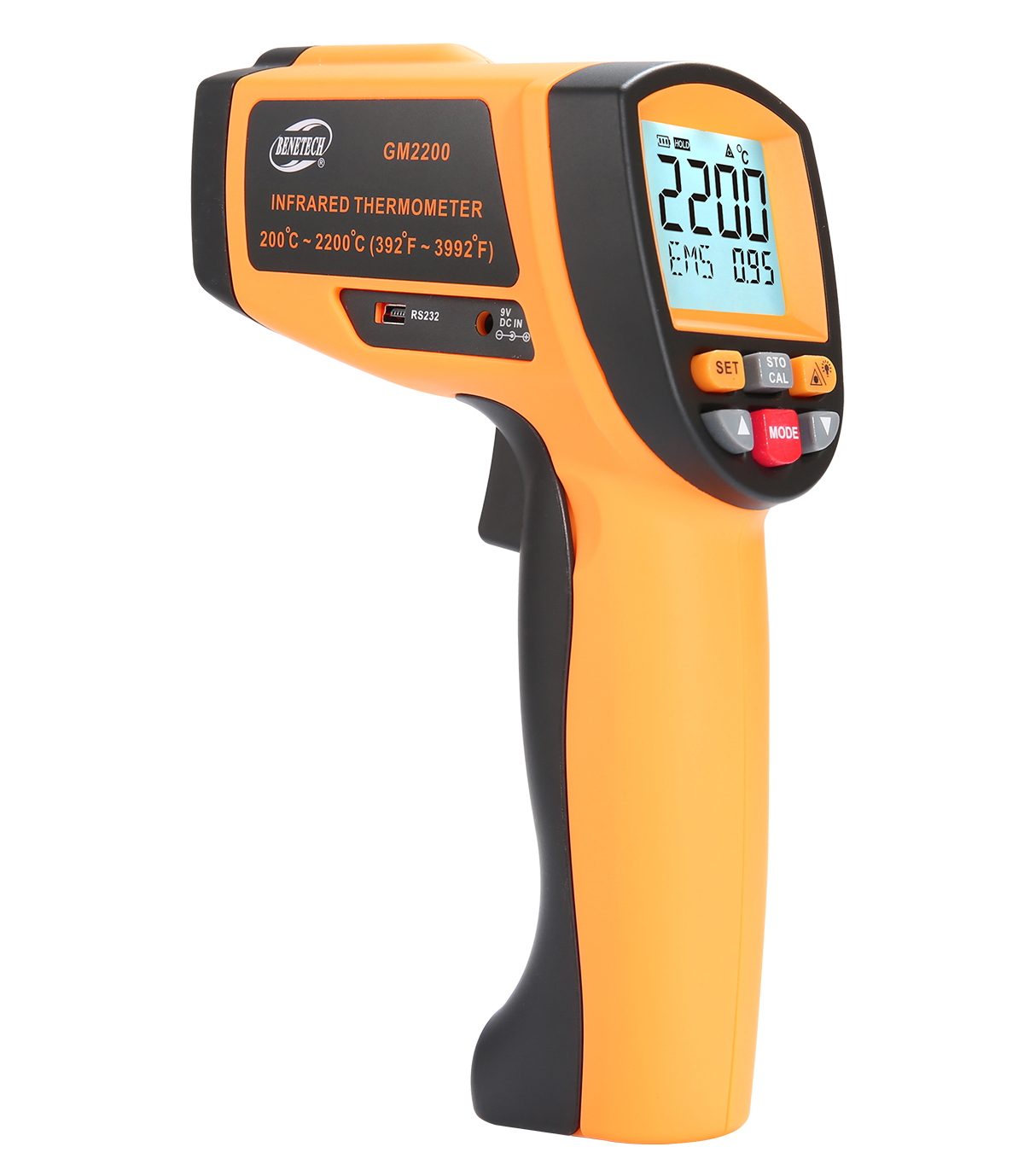

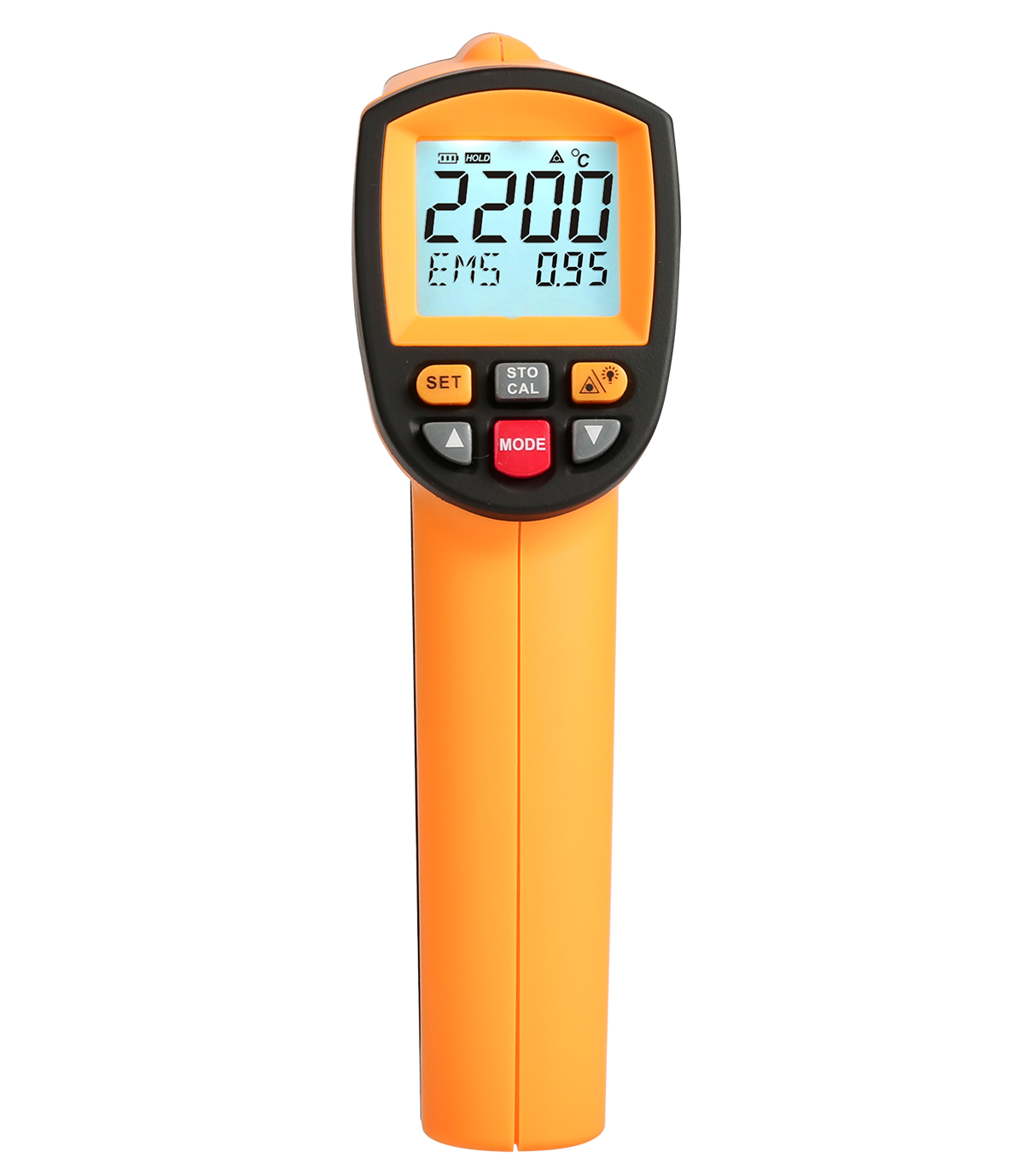

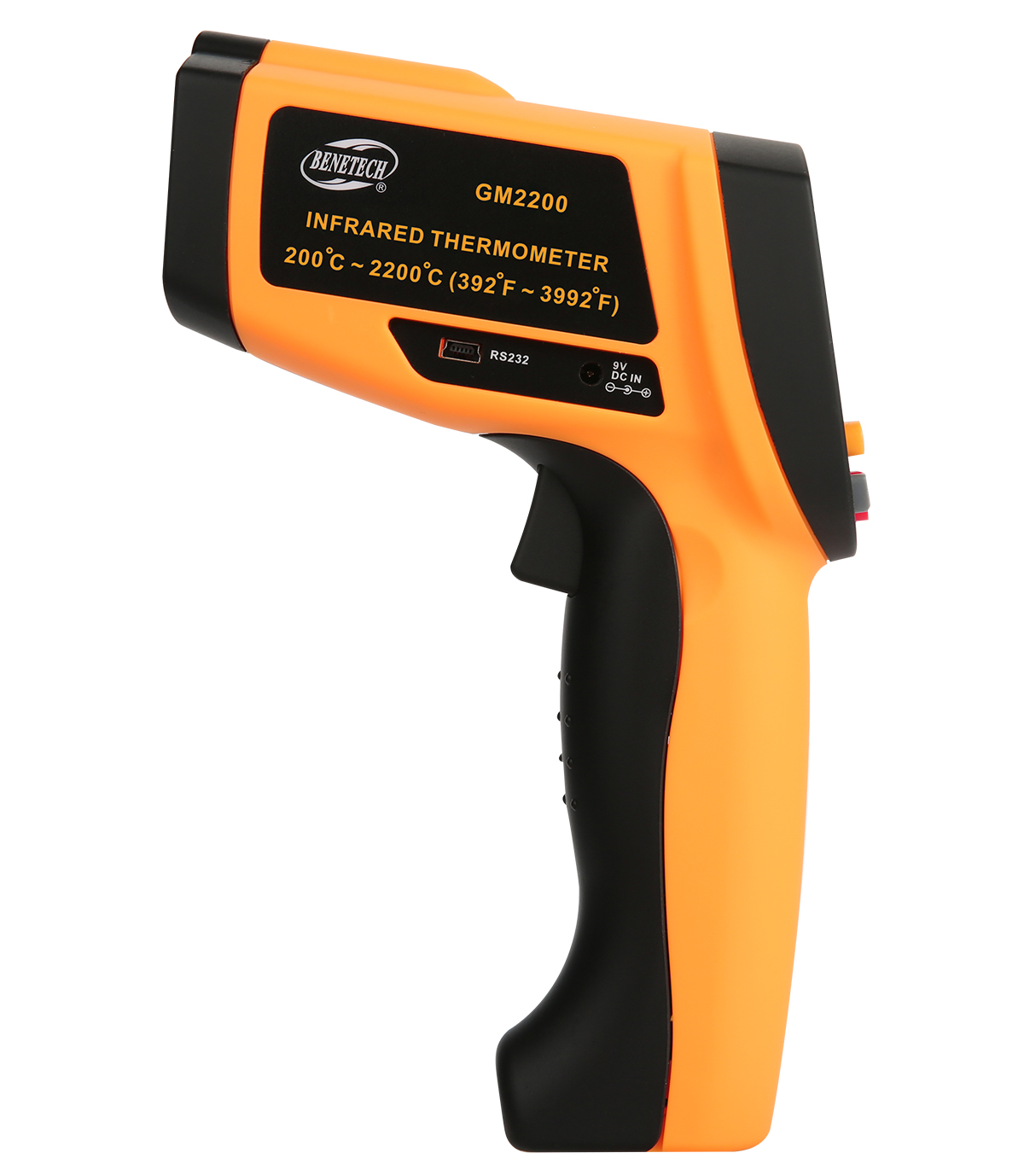

Infrared thermometer GM2200

This unit consists of optics system, photoelectric sensor, signal amplifier, signal process circuit and LCD. The optics

system collects the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the

energy into electricity signal which will be turned out to be readings shown on the LCD by the signal amplifier

and signal process circuit. Equipped with RS232 data export function, this product is surely to be a great

help to your work.

Features Specifications Applications Accessories Download Certification

Temperature range	200 ~ 2200℃ (392 ~ 3992℉)
Accuracy	200℃(392℉)~ 450℃(842℉): ±2℃ or ±2% 450℃(842℉)~ 1100℃(2012℉): ±3℃or ±3% 1100℃(2012℉)~ 2200℃(3992℉): ±4℃or ±3% whichever is bigger
Repeatability	1% of reading or 1℃
Time response	500 mSec, 95% response
Spectral response	900~1700 nm
Emissivity	0.10-1.00adjustable (pre-set 0.95)
Ambient operation range	0 ~40℃ (32 ~ 104℉)
Relative humidity	10-80% RH noncondensing
Storage	-20 ~ 60℃ (-4~140℉)≤85%, without battery
Weight / Size	270G(without battery） ; 141 x 60 x 220mm
Power	9V Alkaline battery or 9V 500mA DC IN
Battery life(alkaline)	Laser Models:10 hrs
Distance to spotsize	80:1
