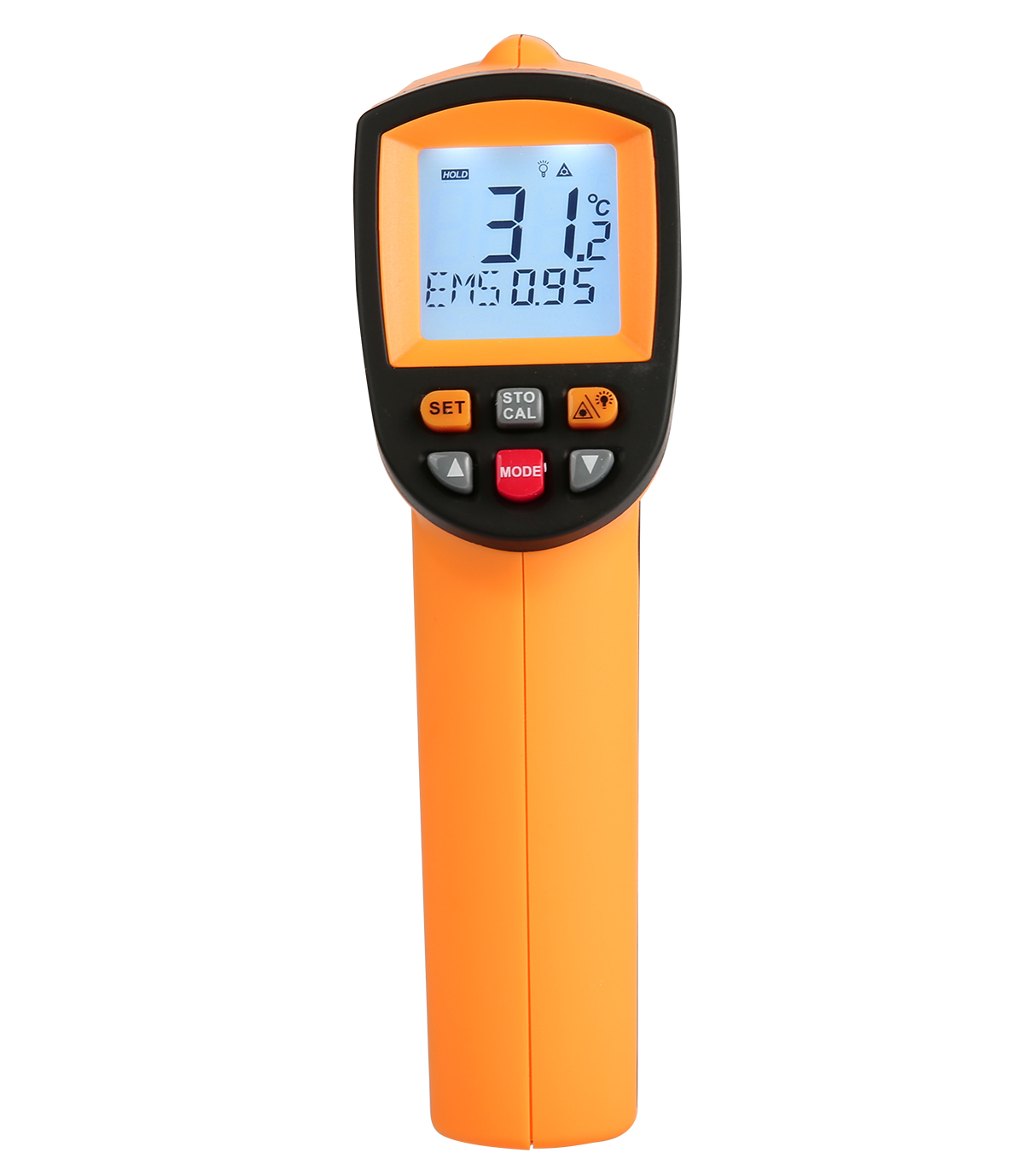

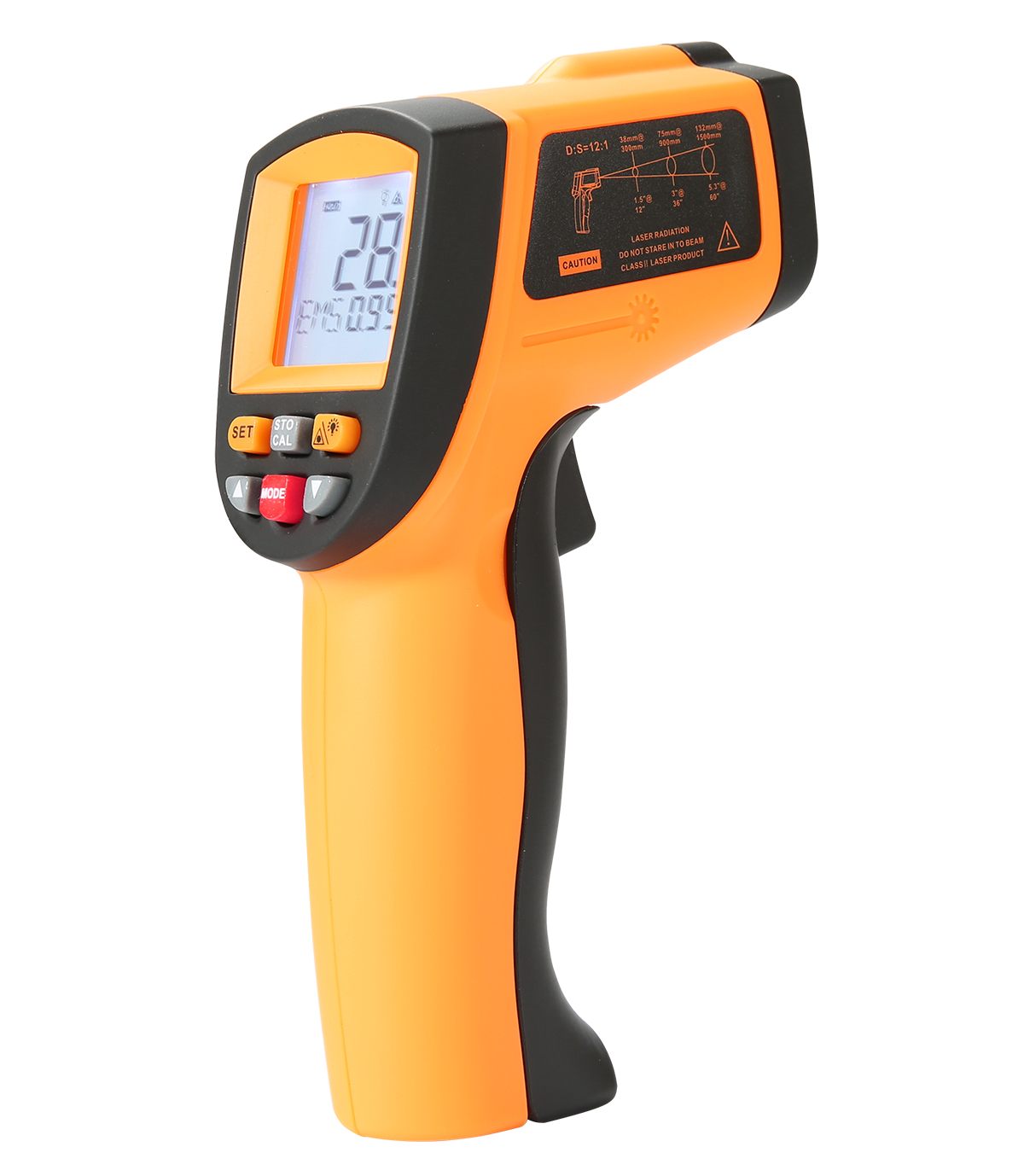

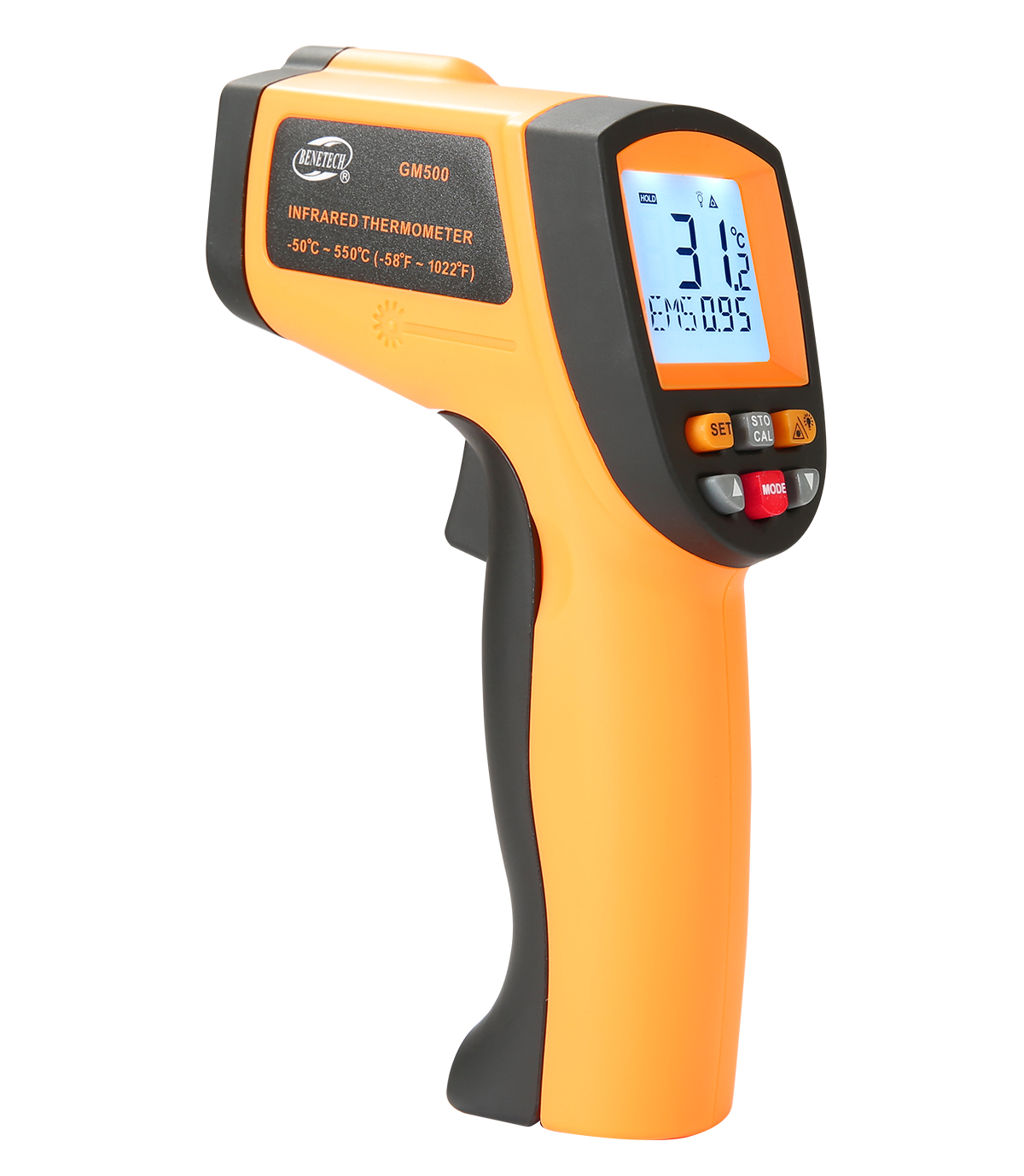

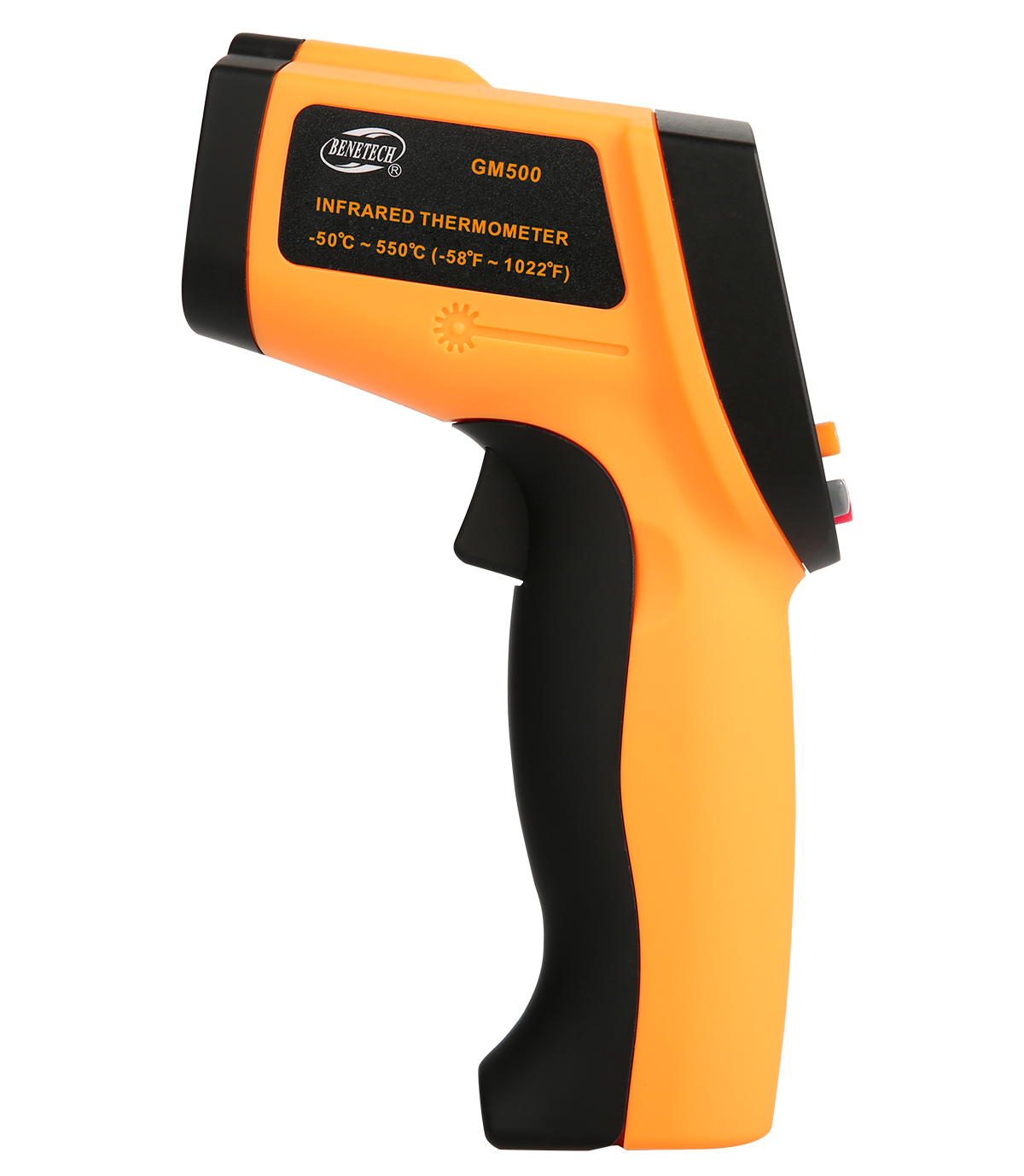

Infrared thermometer GM500

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics

collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates

the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD

after the signal amplifier and processing circuit.

Features Specifications Applications Accessories Download Certification

Temperature range	-50~550℃ (-58~1022℉)
Accuracy	0~550℃(32~1022℉) : ±1.5℃(±2.7℉)or±1.5% -50~0℃(-58~32℉):±3℃ (±5℉) Whichever is greater
Resolution	0.1℃ or 0.1℉
Repeatability	1% of reading or 1℃
Response time	500 mSec, 95% response
Spectral response	5-14 um
Emissivity	0.10~1.00 Adjustable (0.95 Preset)
Distance to Spot size	12:1
Operating Temperature	0 ~40℃ (32 ~ 104℉)
Operating Humidity	10~95%RH non-condensing， up to 30℃(86℉)
Storage Temperature	-20 ~ 60℃ (-4~140℉)
Power	9V Alkaline or NiCd battery
Typical battery life (Alkaline)	Non-laser mode: 22 hrs; Laser Models:12 hrs
Weight	222g
Dimension	11150172mm
