• Mini Coating Thickness Gauge possesses the following features:

  1.Measure coating thickness of metal substrate
  surface
  2.Two modes: Car/User
  3.Three measurement ways: single measurement,
  continuous measurement, difference value
  measurement
  4.Three calibration functions: zero calibration,
  two-point calibration, and basic calibration
  5.Metric unit and imperial unit
  6.Auto power off

• Measurement range	0 1.80m 71.0 ~ m/0~ mil
  Car mode resolution	0.05mm/2mil
  User mode resolution	0.01mm/1mil
  Measurement error	±0.1mm
  Minimum diameter of substrate	50mm
  Minimum thickness of substrate	0.5mm
  Temperature range	18~30℃
  Work humidity range	10~80%RH
  Power	2*1.5V AAA batteries




• Please refer to the manual for details

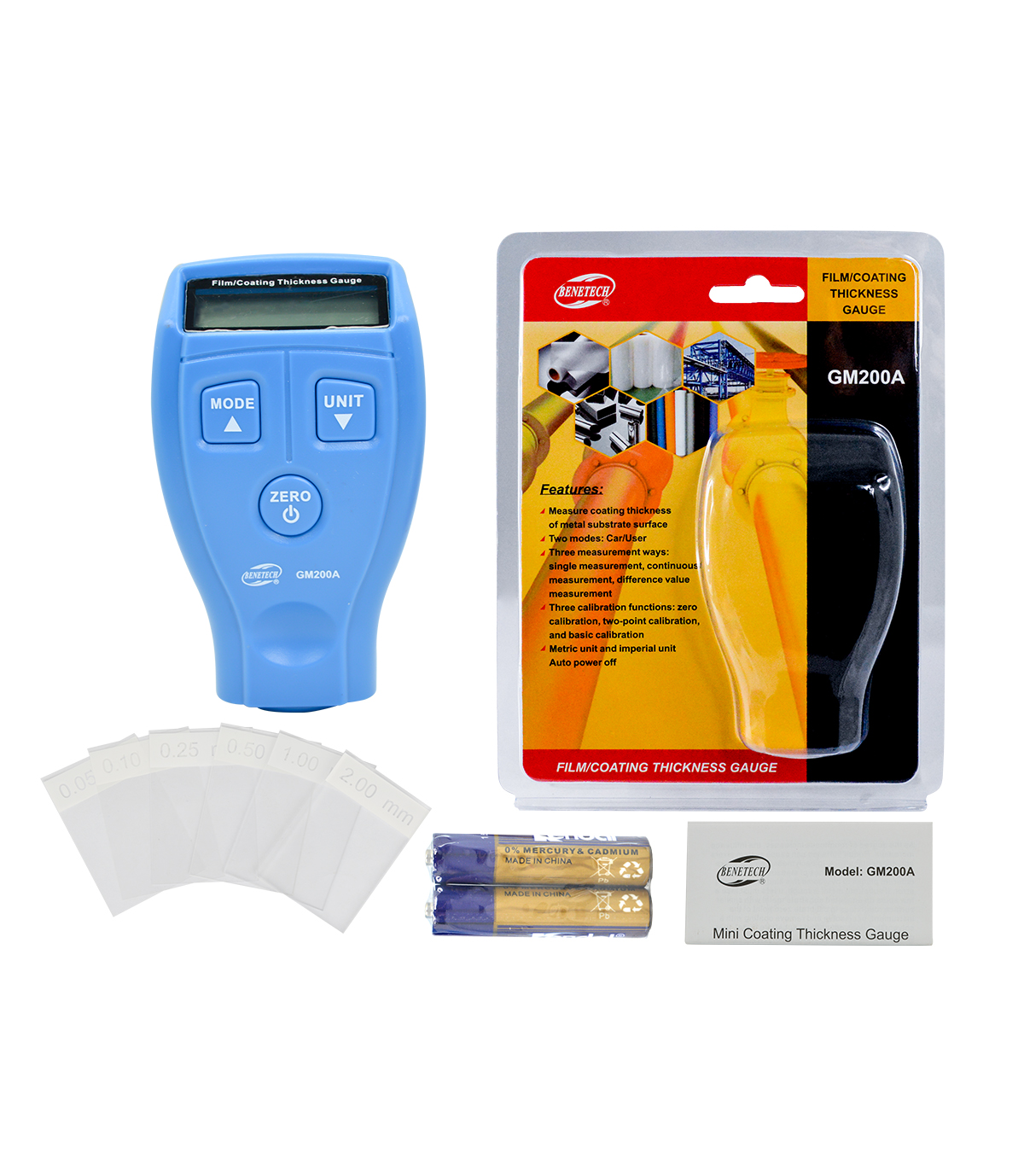

• Instructions*1

  Host*1

  Iron base*1

  Aluminum base*1

  Calibration sheet*6

  Blister packaging*1

  1.5V AAA battery*2

•
•
