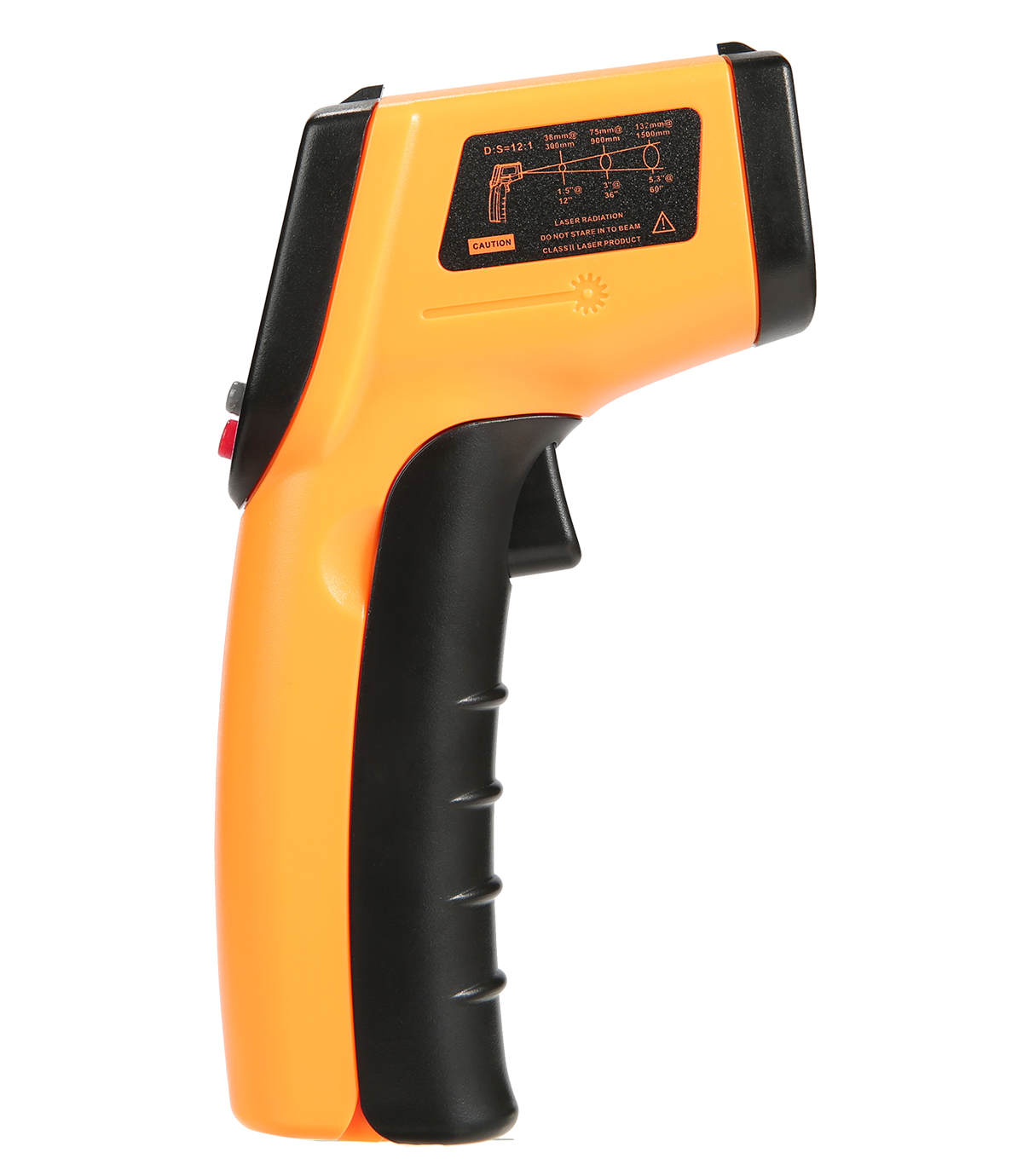

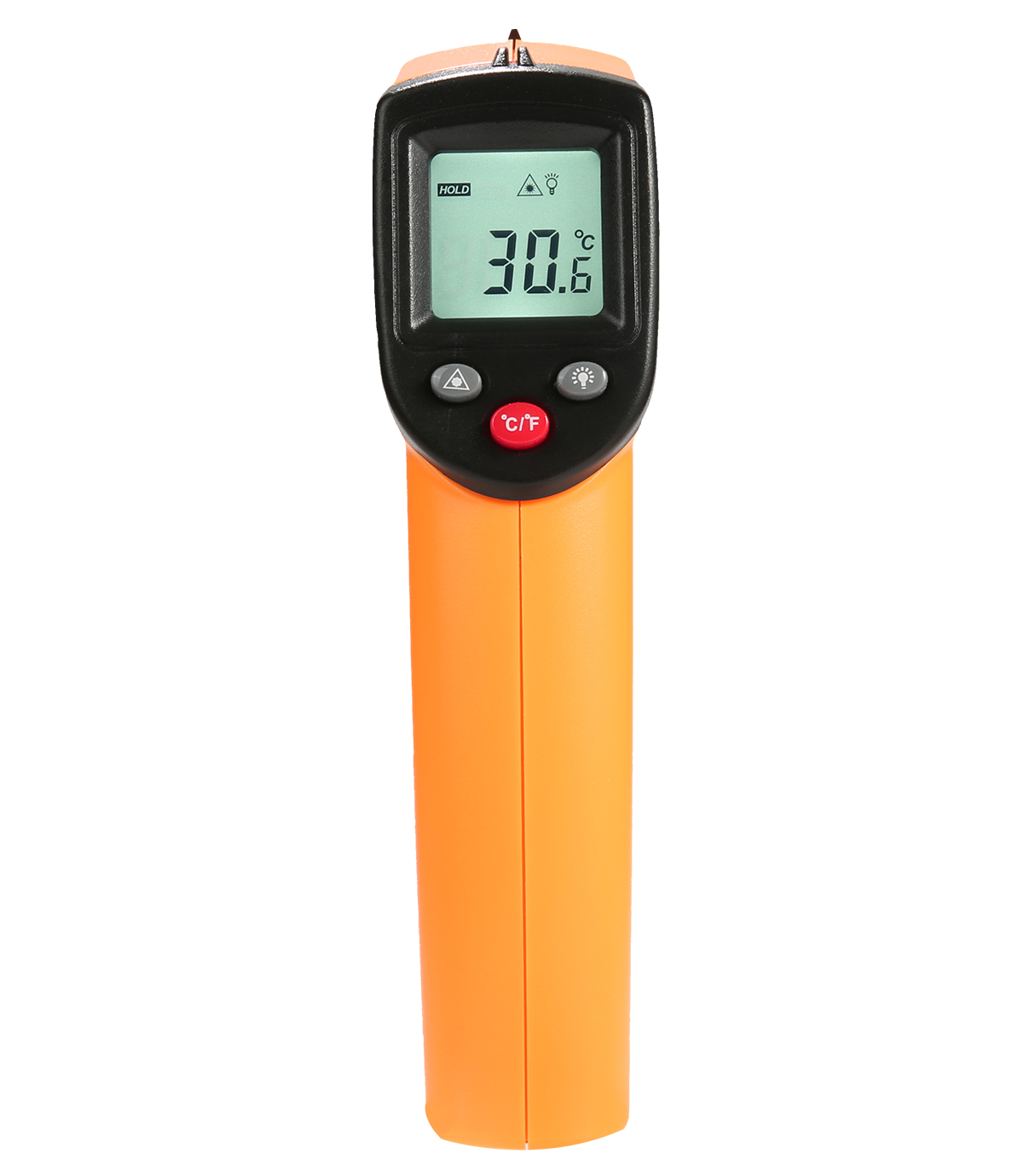

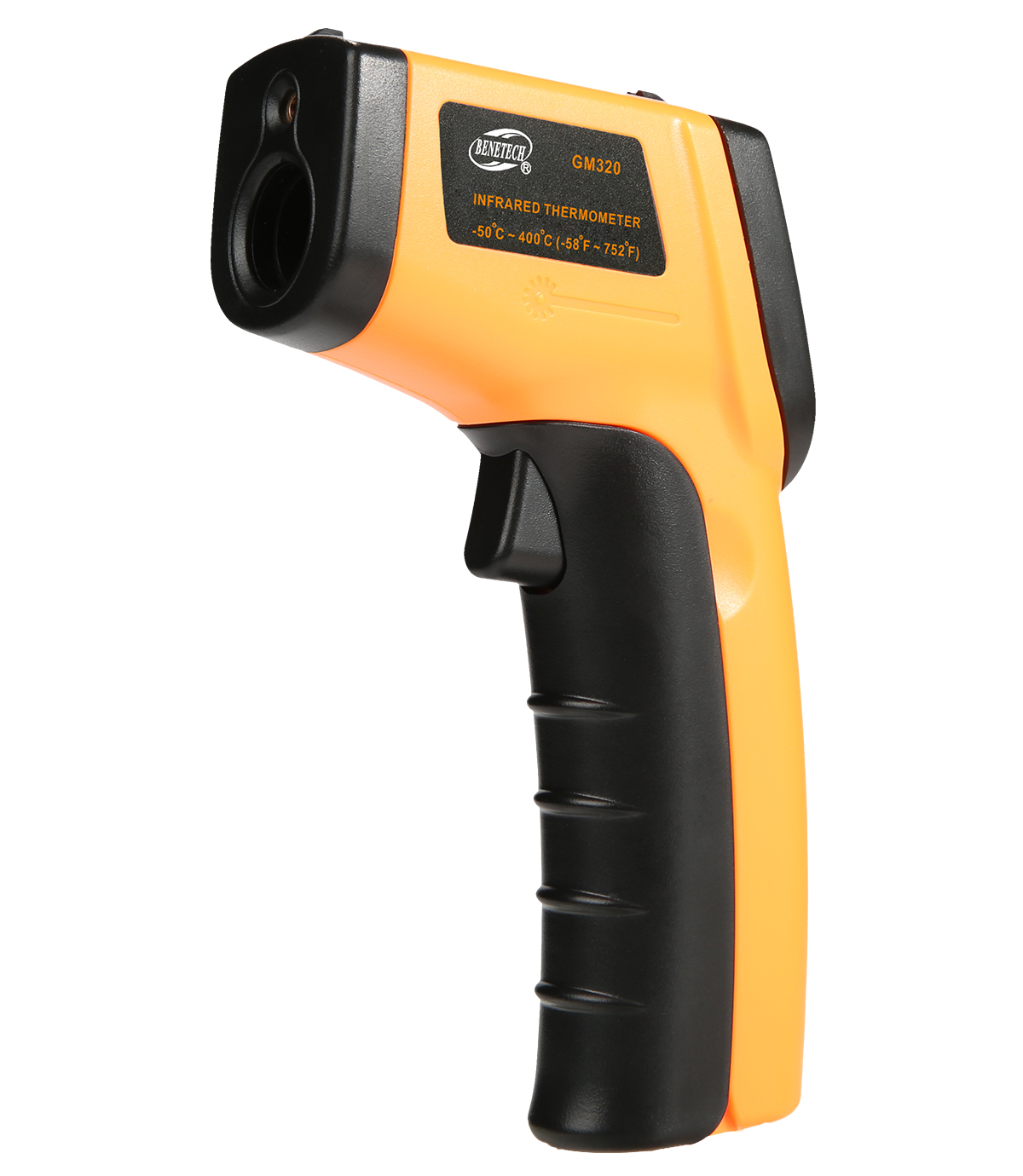

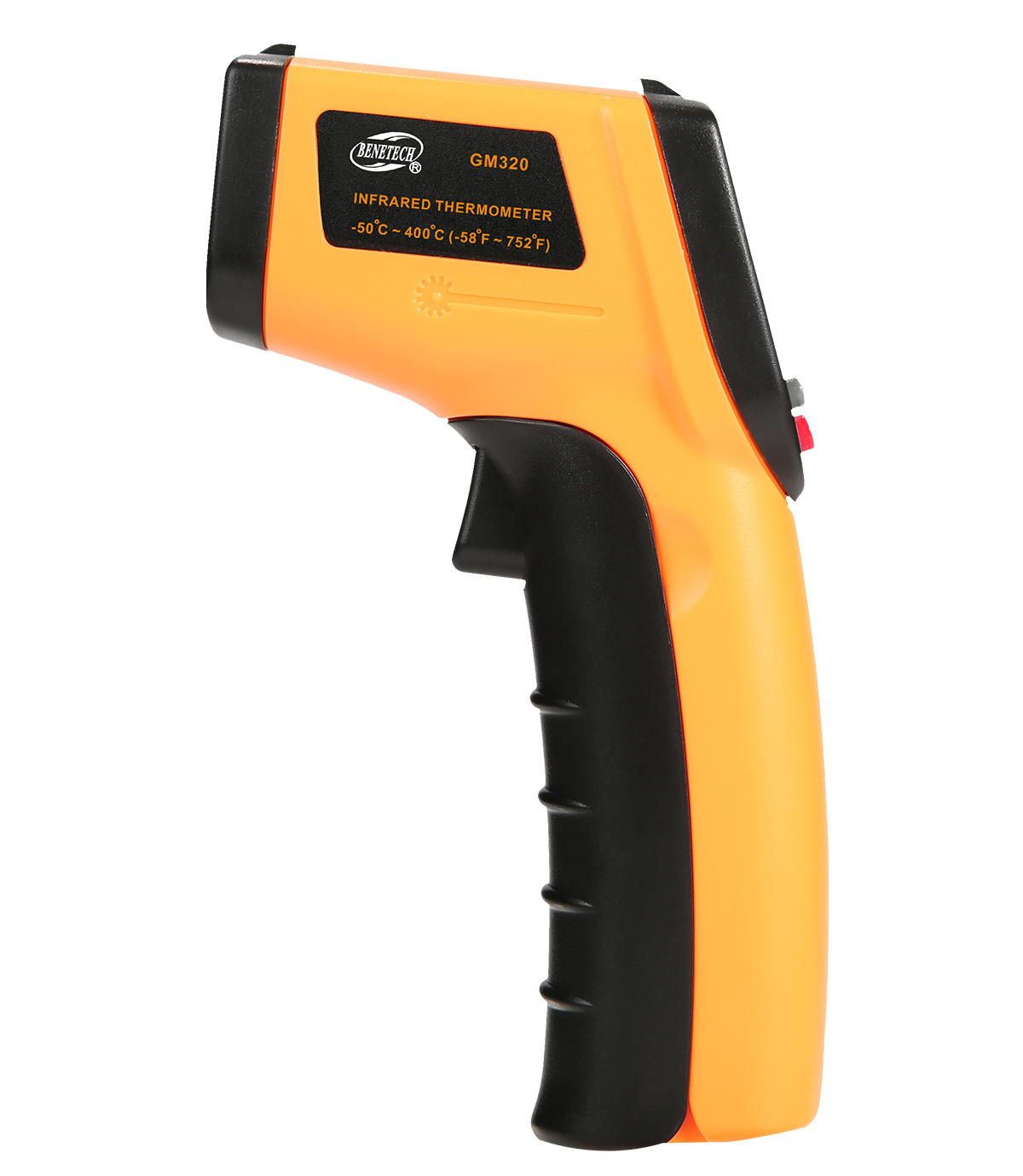

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.
The Optics collected the infrared energy emitted by object and focus onto the Sensor.
Then the sensor translates the energy into an electricity signal.
This signal will be turned out to be digital shown on the LCD
after the signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
1.℃ / ℉ temperature unit conversion
2.Data retention
3.Automatic shut-down
4.Positioning laser
5.LCD backlight
Temperature range |
-50 ~ 400℃ (-58 ~ 752℉) |
Accuracy |
0℃~400℃ (32℉~752℉) :±1.5℃(±2.7℉) or±1.5% -50℃~0℃(-58℉~32℉): ±3℃ (±5℉) Whichever is greater |
Resolution |
0.1℃ or 0.1℉ |
Repeatability |
1% of reading or 1℃ |
Response time |
500 mSec, 95% response |
Spectral response |
5-14 um |
Emissivity |
0.95 Preset |
Distance to Spot size |
12:1 |
Operating Temperature |
0 ~40℃ (32 ~ 104℉) |
Operating Humidity |
10~90%RH non-condensing, up to 30℃(86℉) |
Storage Temperature |
-20 ~ 60℃ (-4~140℉) |
Power |
1.5V AAA*2 battery |
Typical battery life |
Laser off:12 hrs |
Blister packaging*1
Host*1
1.5V AAA battery*2
Instructions*1
