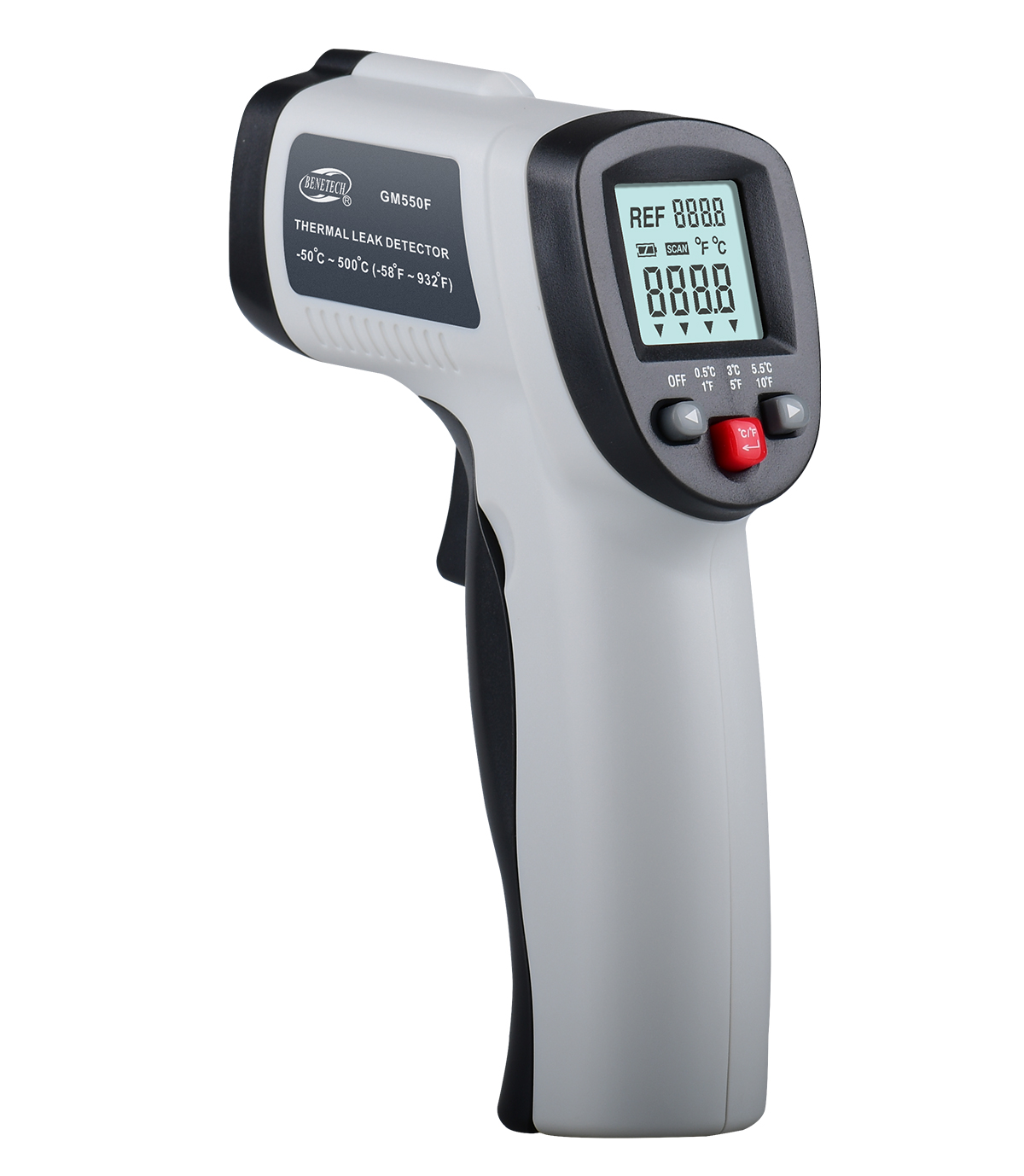

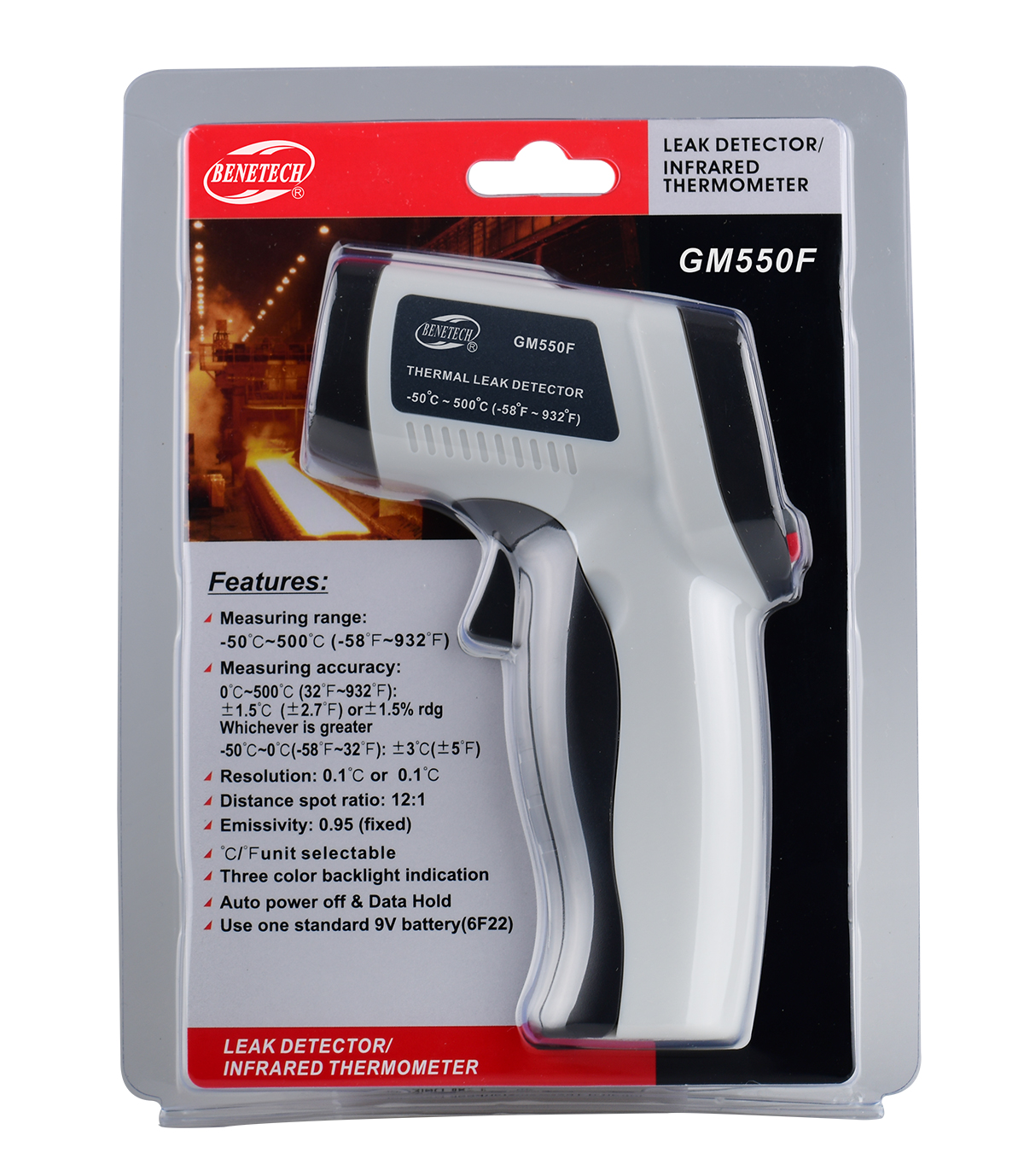

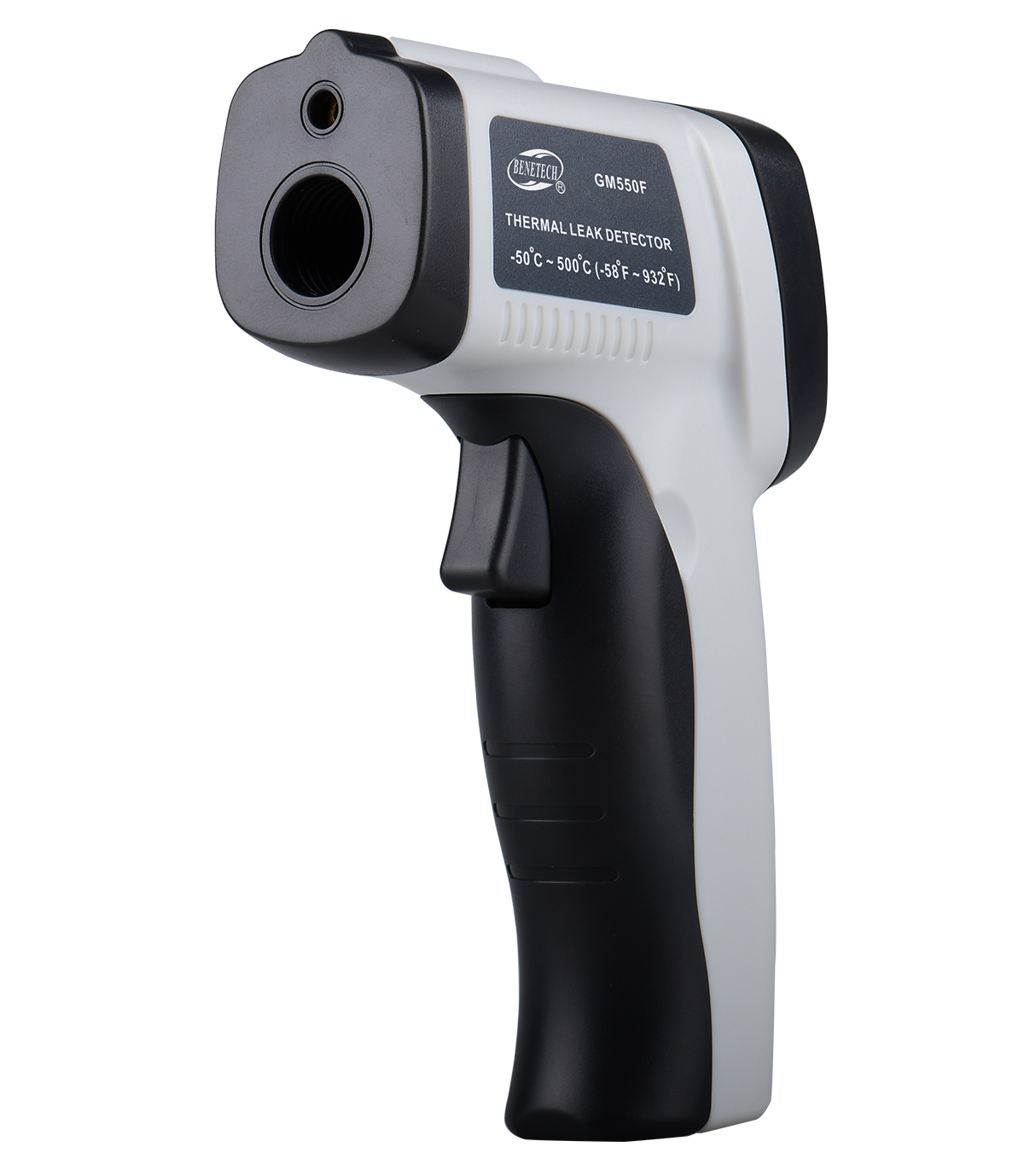

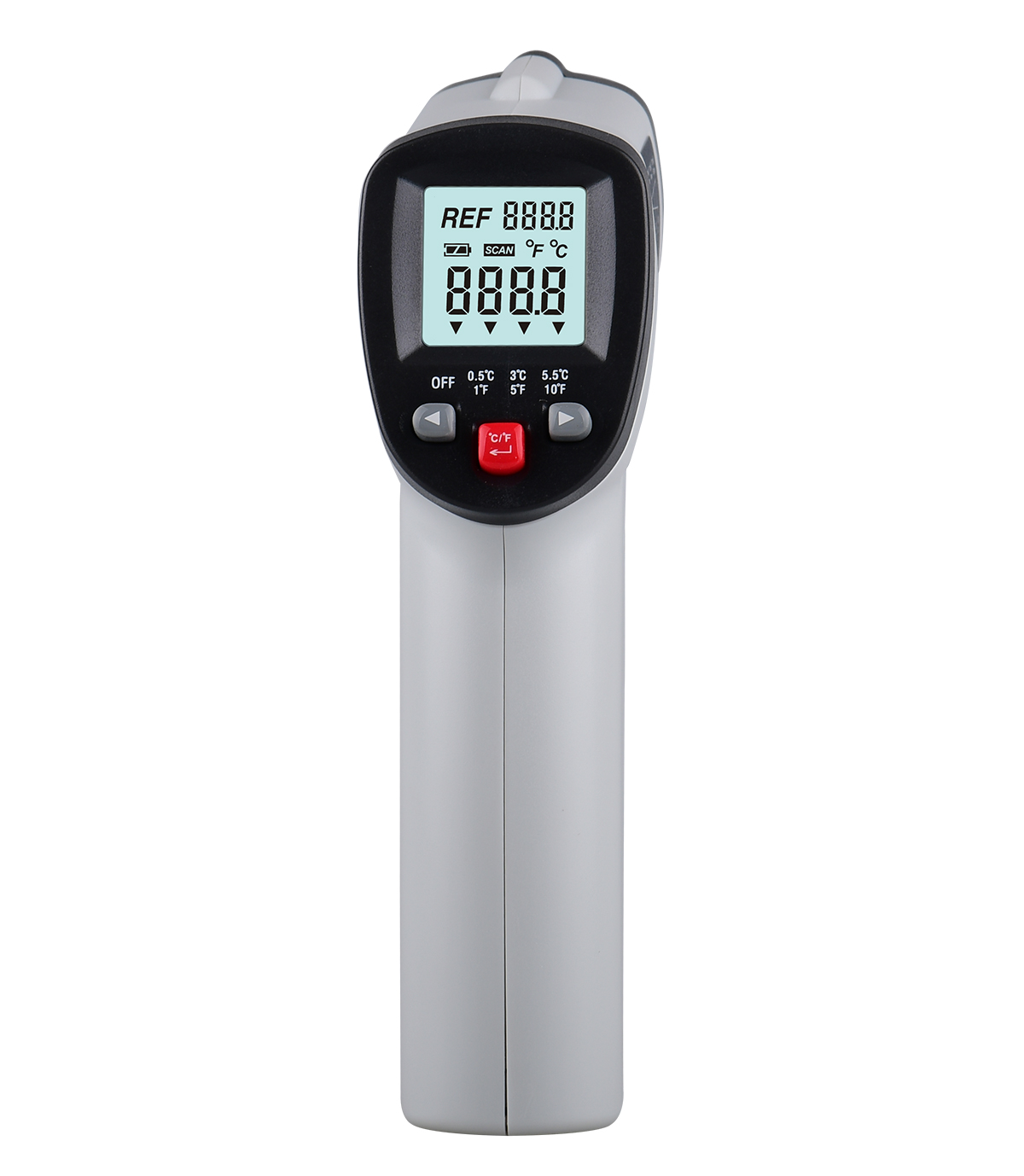

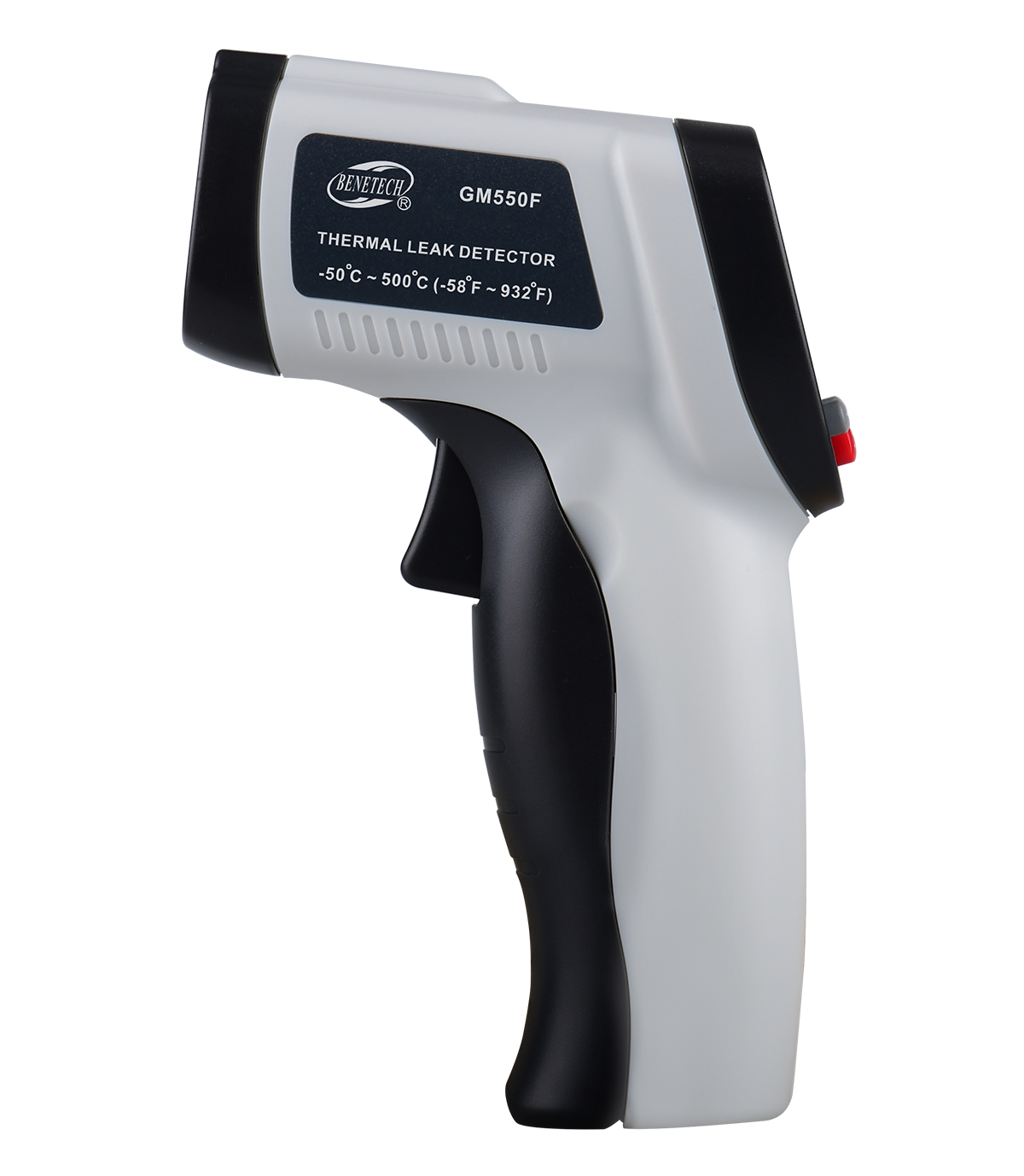

Infrared thermometer GM550F

This instrument is composed of optical system,photoelectric sensor, signal amplifier,

signal processing circuit and LCD display, etc. Optical system transmits infrared

energy radiated from the object surface to photoelectric sensor, which converts

the energy into corresponding electrical signal. Processed by signal amplifier and

signal processing circuit, the signal is displayed on the LCD as digital reading.

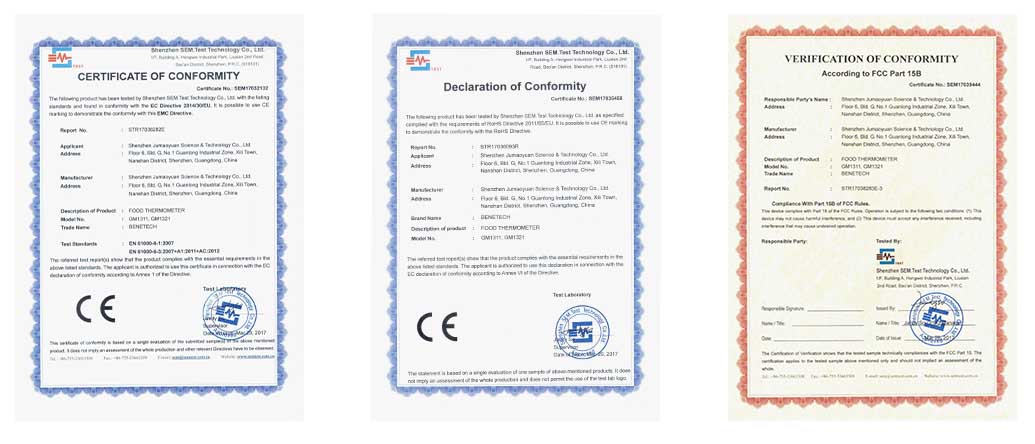

Features Specifications Applications Accessories Download Certification

Measurement temperature range	-50℃ ~ 500℃ (-58℉~ 932℉)
Measuring accuracy	0℃~500℃ (32℉~932℉) ±1.5℃ (±2.7℉) or±1.5% rdg Whichever is greater -50℃~0℃(-58℉~32℉) ±3℃ (±5℉)
Repeatability	1% reading or 1 degree Celsius
Response time	500 mSec, 95% response
Response wavelength	5-14 um
Emissivity	0.95 Preset
Working temperature	0 ~40℃ (32 ~ 104℉)
Relative humidity	10-95% RH without condensation
Storage temperature	-20 ~ 60℃ (-4~140℉)
D:S	12:1
Battery life	Laser Models:12 hours
Power	9V battery(6F22)
Size	15310143mm
Weight	147.5g
